Wood block chippers

PIRANA LONGA

Kód výrobku: SP/TRA/01

Machine equipment is designed for crushing branches, wood and wood waste, using two-way self-feeding cutting screw. The screw is supported by the support bearing, which prevents its offset. The machine has automatic feeder and all functions are turned on mechanically. Required tractor power from 10 kW and more. The wood chipper takes branches with leaves, needles, branched, dry, wet, and takes also boards and beams.

Connection to the three-point hitch of the tractor / small tractor by customer's choice. When crushing the branches are inserted from behind the tractor and chips are blown to the side on the ground or into the net bag (accessory) that can be attached to the chipper.

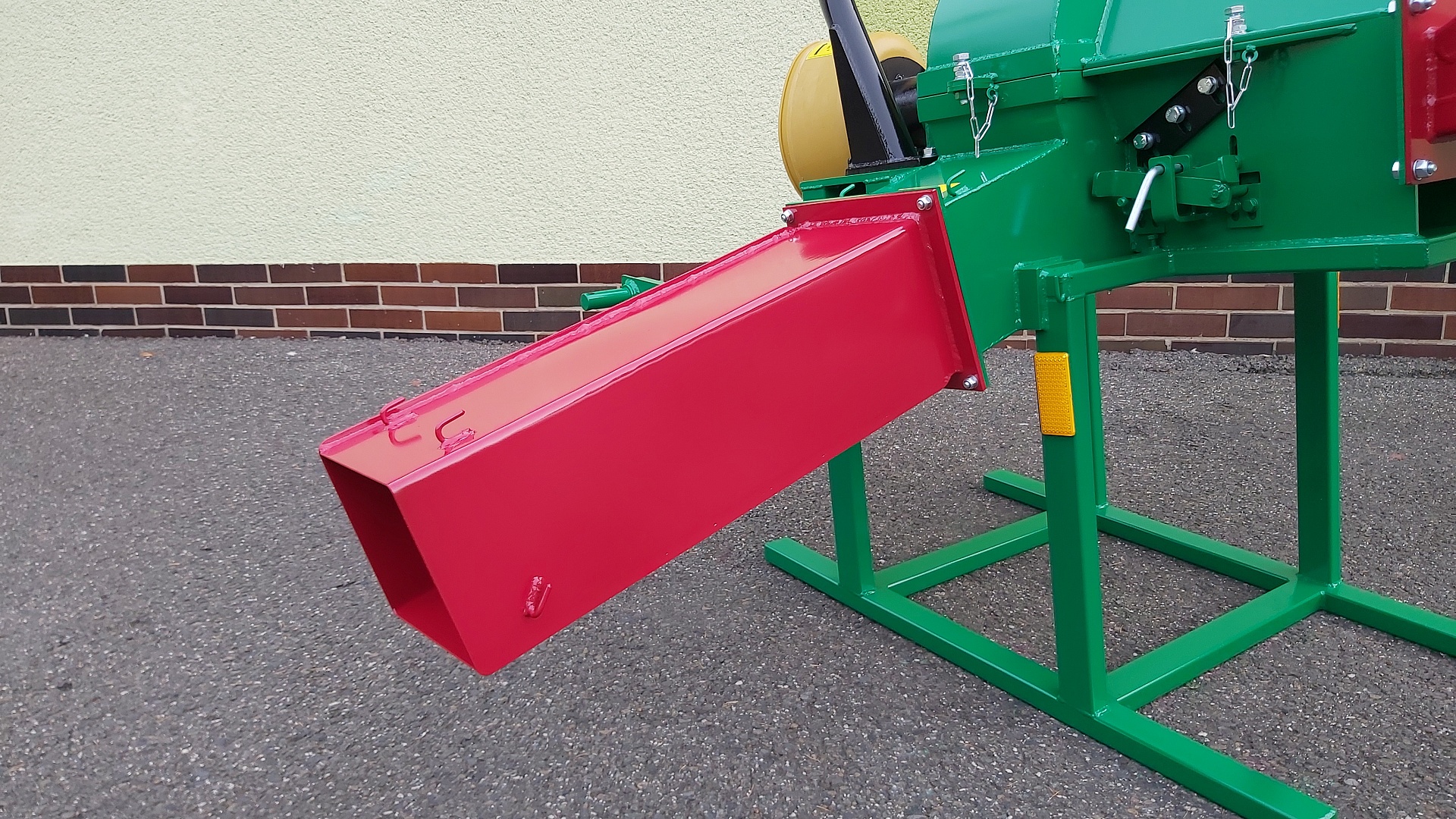

The receiving hopper  for inserting of branches is equipped with safety brake. When it is pressed, the brake is stucked into the inserted material and the feeder is stopped.

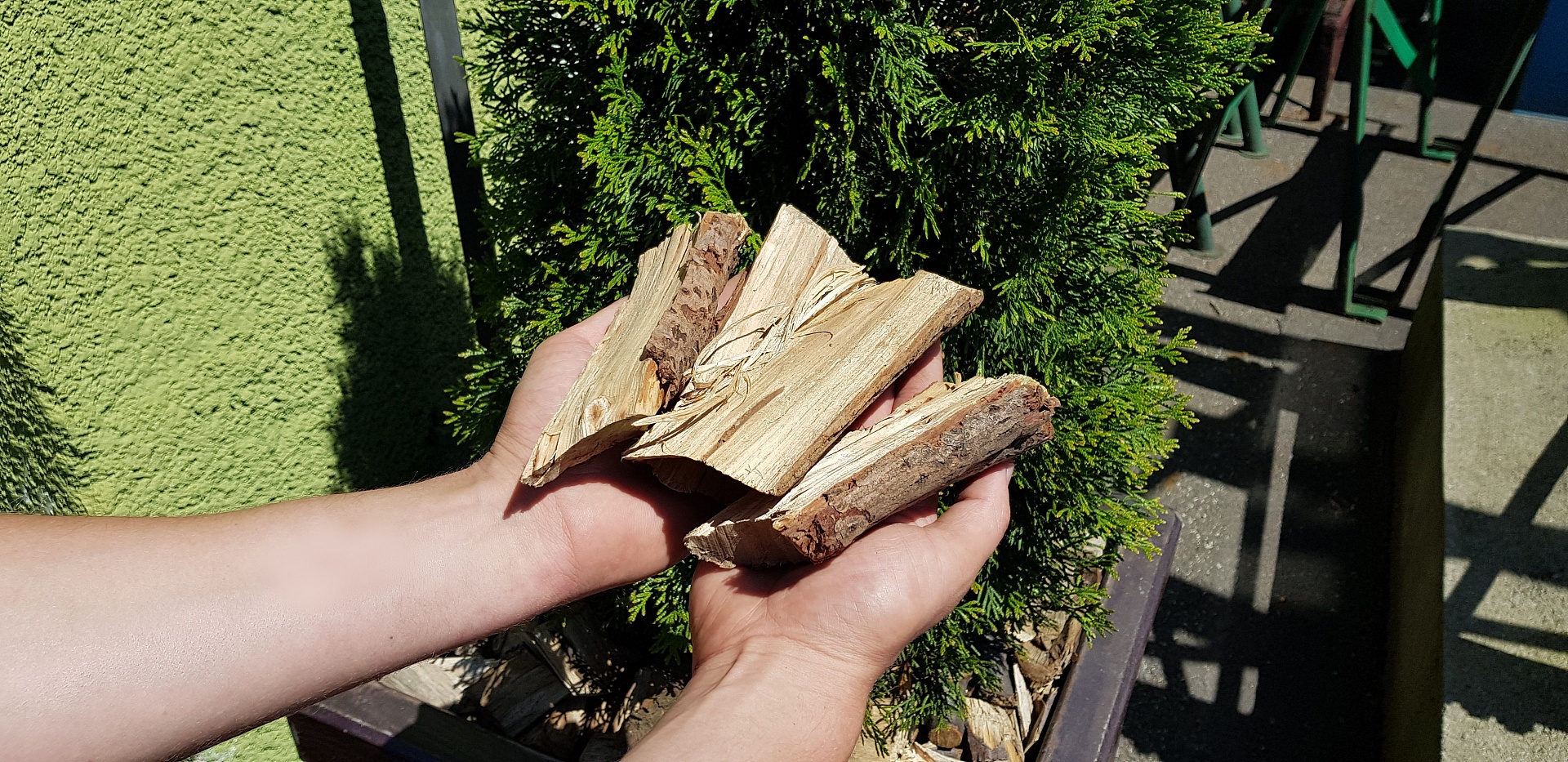

The final chip is suitable for heating in a boiler or fireplace, soil fixing and possibly for other purposes. The chip is asymmetrical and airy, so beautifully swells, does not mould and its calorific value is very high.

PTO cardan in the price 239,-Eur is FREE NOW

WIRING SPECIFICATIONS FOR TRACTOR
Pieces
Without VAT
from 45 000 Kč
Price with VAT
from 54 450 Kč

Availability:
P
We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.
Into production

Media

Pictures

Video

Technical parameters

Length:1 780 mm
Width:600 mm
Height:900 mm
Weight:190 kg
Cutting mechanism:two-way auger
Maximal crushed material diameter:max. 7 cm
Chip length (not adjustable):log length 15 cm
Power:5 m3/hour
Wood chips output:Without blowing
Emergency brake:Yes
Tractor power from:10 kW
Cardan RPM:540 - 1000 RMP
Hinge type:I a II - as specified by the customer
:

PRODUCT LIST

Download product datasheet in PDF format:

Wiring specification for tractor

TYPE OF RACEd1 = Ø PINS BOTTOM HINGEd2 = Ø PIN THIRD POINTHEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.IIØ28mmØ25mm730mm
Tractor cat.IØ22mmØ19mm730mm
Small tractorØ22mmØ19mm530mm
Other
(own specification)
