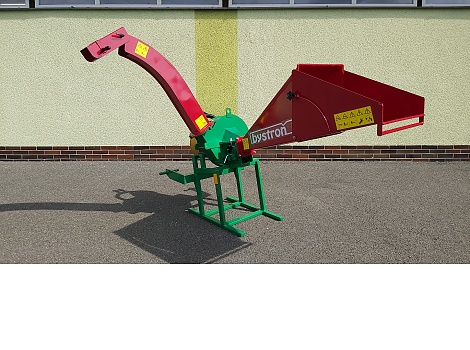

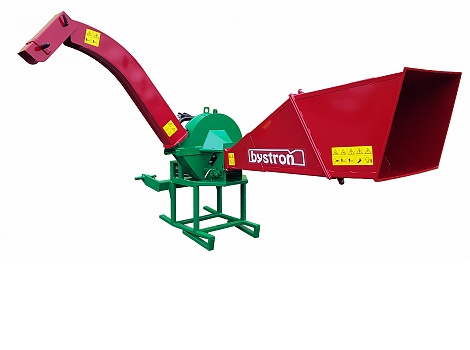

Wood chippers PIRANA WITH TROLLEY CONNECTION Bystroň

Kód výrobku: ST/TRA/02

Machine equipment is designed for crushing branches, wood and wood waste, using two-way self-feeding cutting screw. The machine has automatic feeder and all functions are turned on mechanically. Required tractor power from 10 kW and more. The wood chipper takes branches with leaves, needles, branched, dry, wet, and takes also boards and beams.

Connection to the three-point hitch of the tractor according to customer's specifications. When crushing the branches are inserted from a side the tractor and chips are blown behind the tractor. The chip is blown by the chimney to the ground or to the crate. Into the bag by bagging chimney(accessory).

The final chip is suitable for heating in a boiler or fireplace, soil fixing and possibly for other purposes. The chip is asymmetrical and airy, so beautifully swells, does not mould and its calorific value is very high.

PTO cardan in the price 239,-Eur is FREE NOW

TRACTOR CONNECTION

Pieces

Without VAT

from 62 100 Kč

Price with VAT

from 75 141 Kč

Availability:

We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.

Into production

Media

Pictures

Video

Technical parameters

	Length:	1,6 m
	Width:	2,6 m
	Height:	1,8 m
	Weight:	260 kg
	Cutting mechanism:	two-way auger
	Maximal crushed material diameter:	max. 7 cm
	Chip length (not adjustable):	chip length 5-7 cm
	Power:	5 m³/hour
	Wood chips output:	Output blow
	Platform hinge:	Yes
	Tractor power from:	10 kW
	Cardan RPM:	540 - 1000 RMP
	Hinge type:	I a II - as specified by the customer
	cardan shaft isn't included:

Wiring specification for tractor

TYPE OF RACE	d1 = Ø PINS BOTTOM HINGE	d2 = Ø PIN THIRD POINT	HEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.II	Ø28mm	Ø25mm	730mm
Tractor cat.I	Ø22mm	Ø19mm	730mm
Small tractor	Ø22mm	Ø19mm	530mm
Other (own specification)
