Stake hammers

STAKE HAMMER

Kód výrobku: ZAT/01

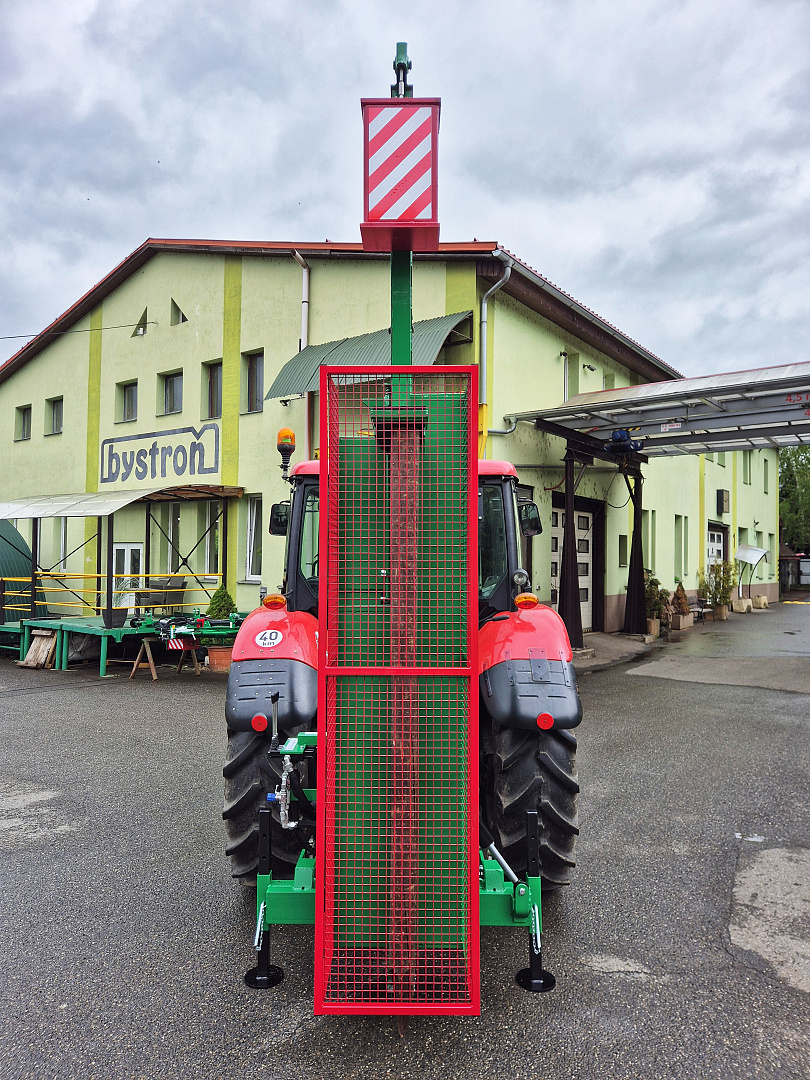

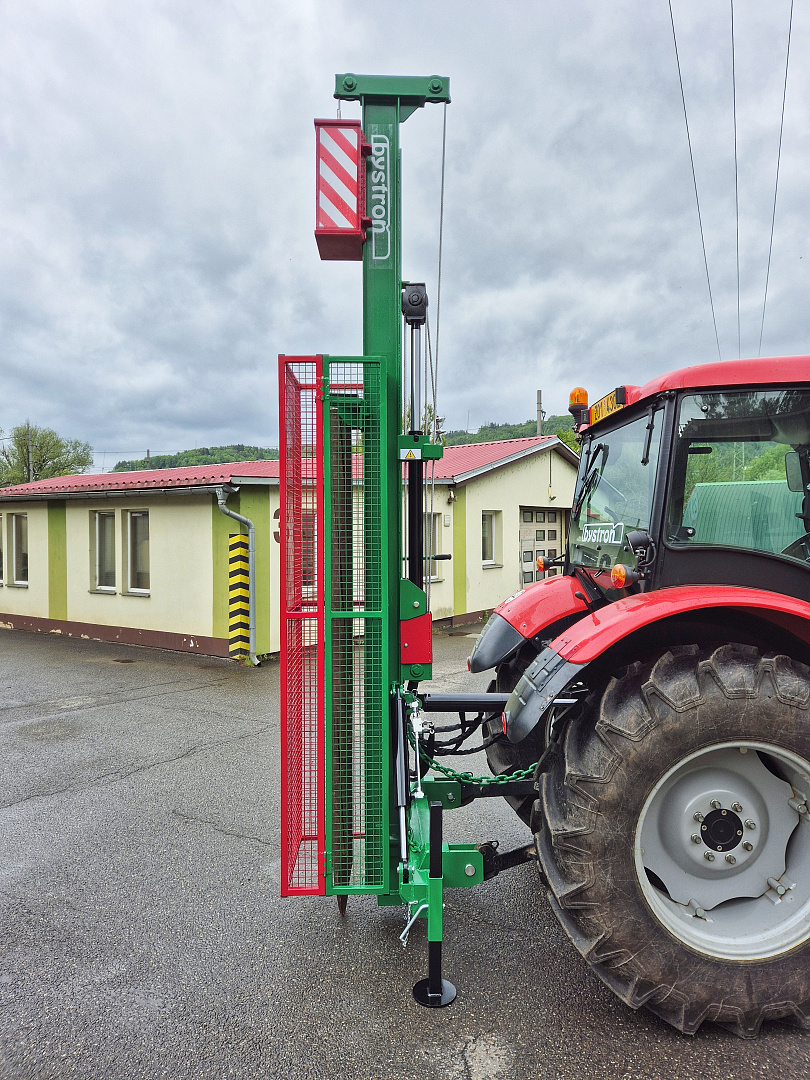

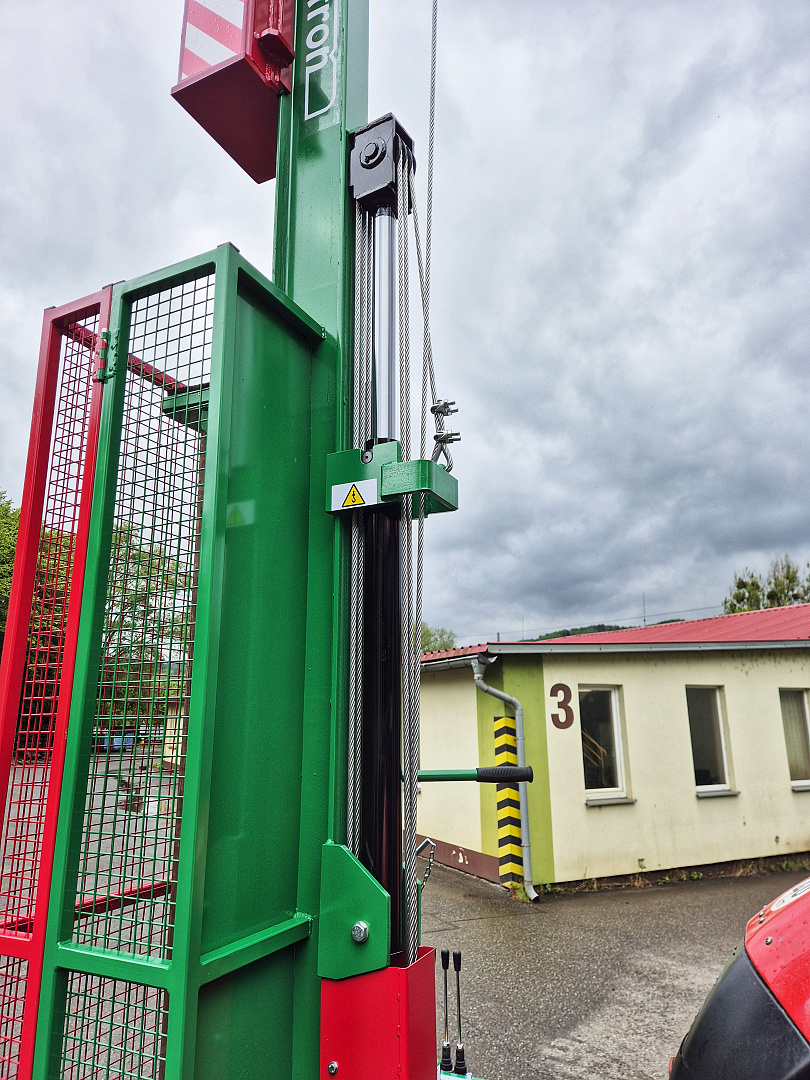

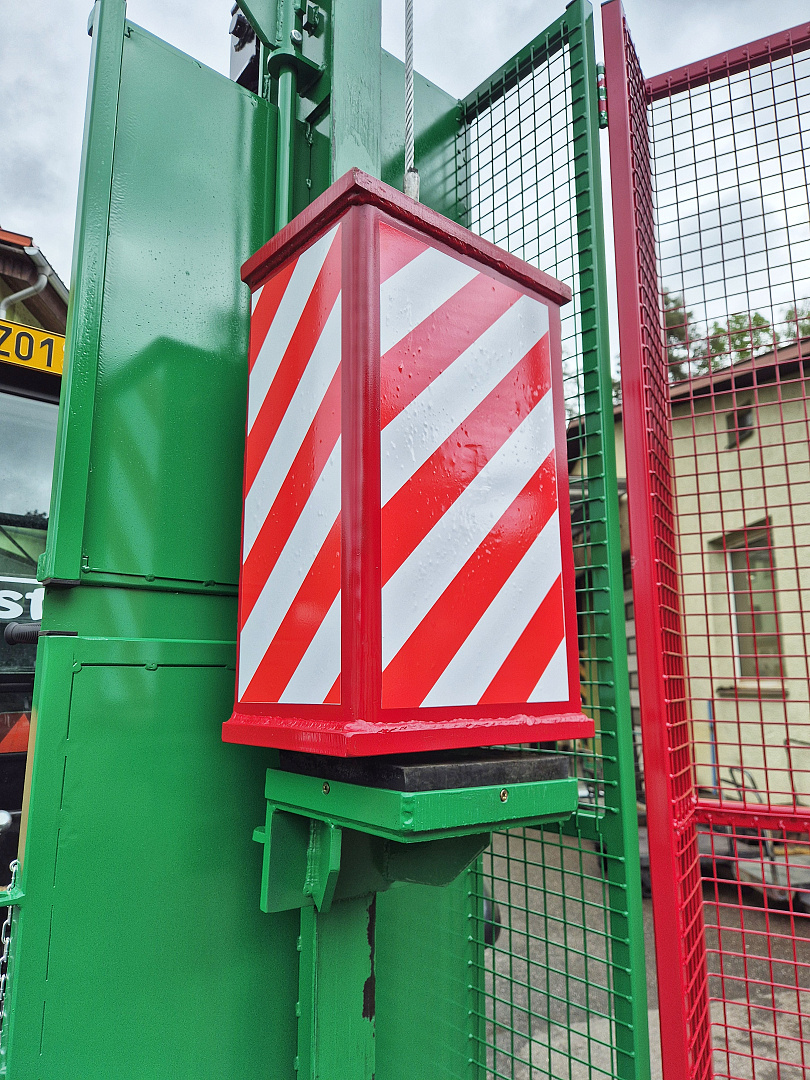

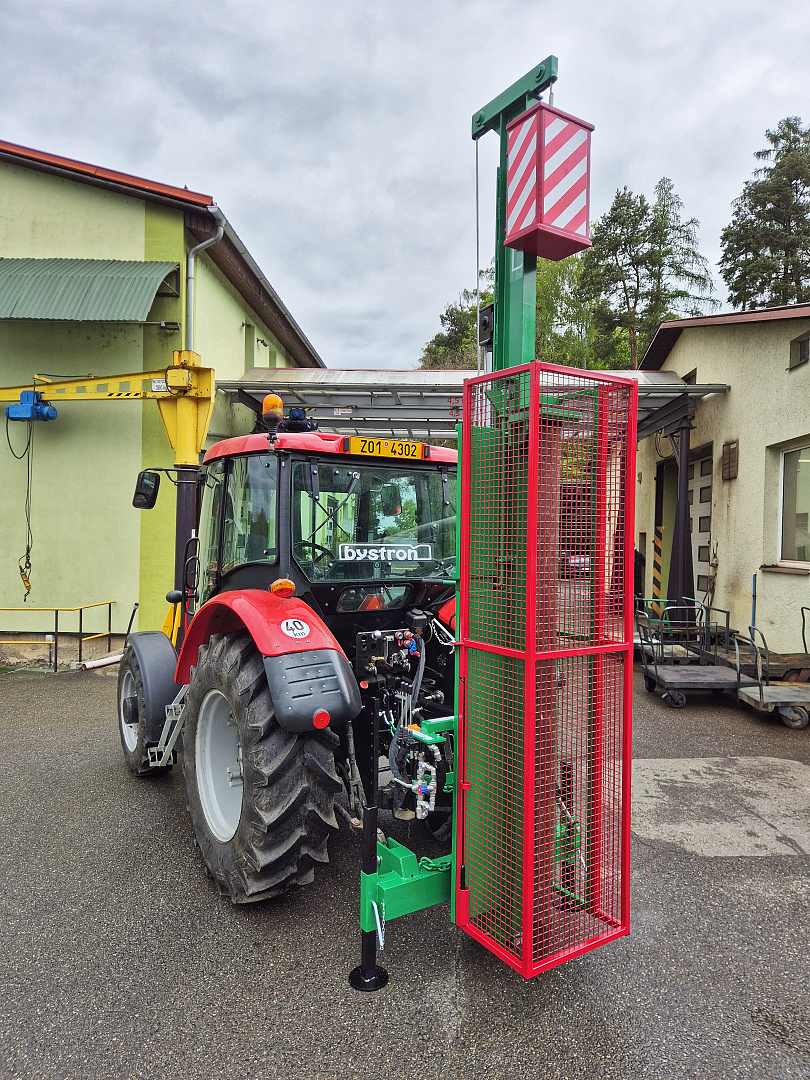

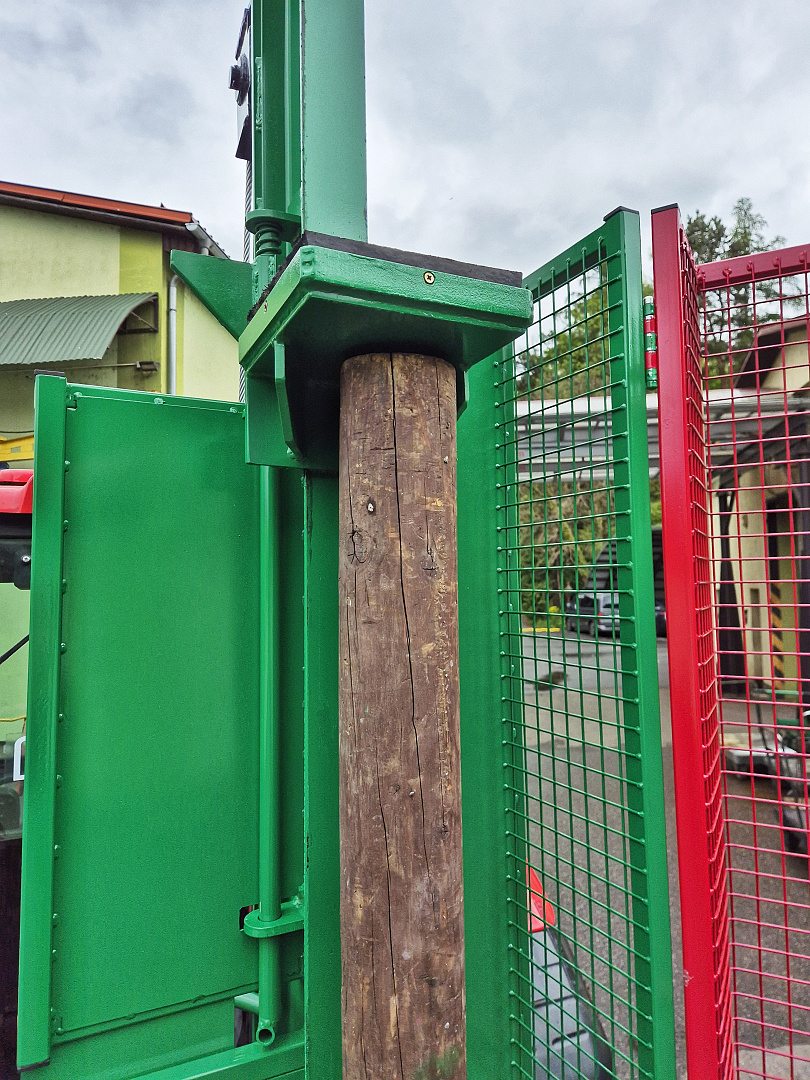

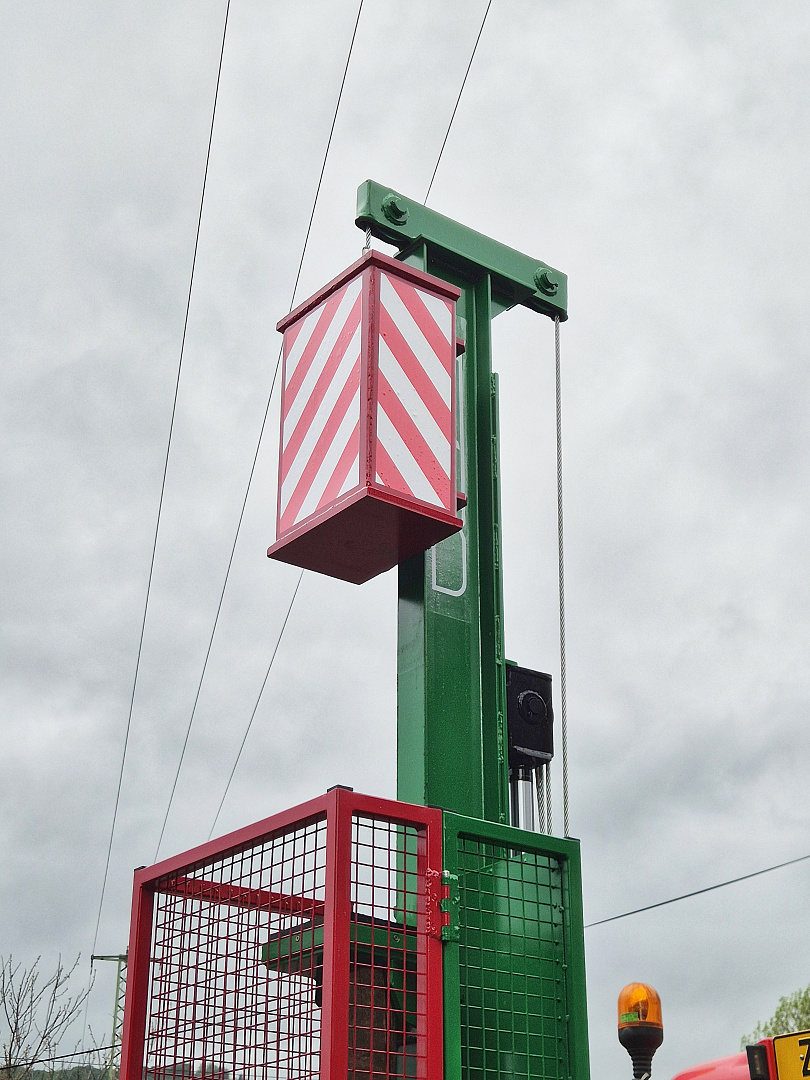

Stake in a machine chamber is hammered by hammer through a pad, to prevent damage to the stake. The hammer's lifting, arrestment and lowering is controlled mechanically. The hammer lifting mechanism is driven by the tractor's hydraulic circuit (lifting + lowering by plunger piston).

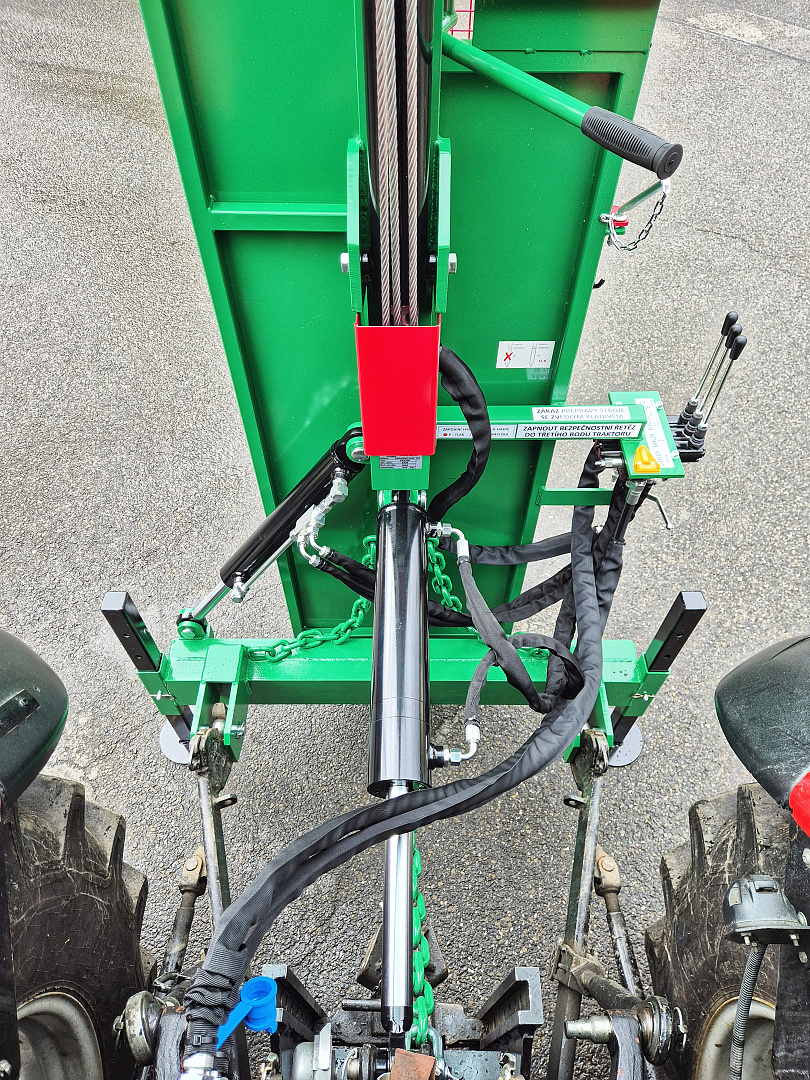

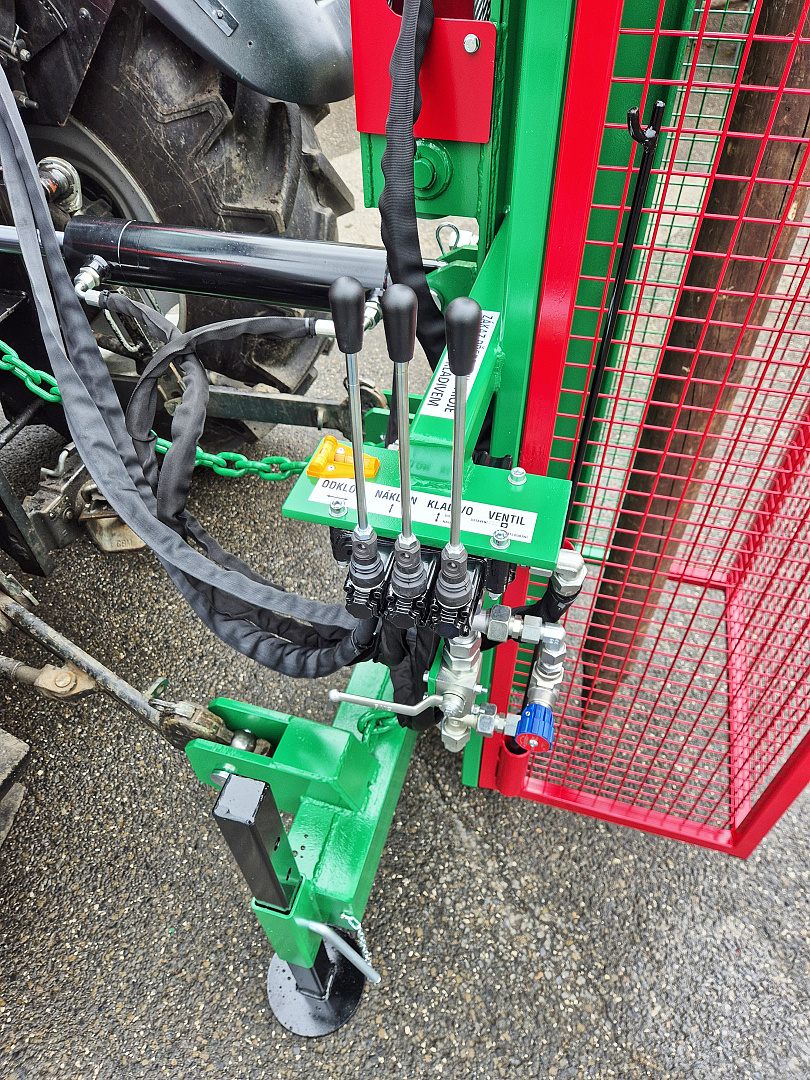

The hammer is equipped with longitudinal and transverse tilts, controlled by hydraulic double-acting cylinders, which are connected to the hydraulic circuit of the tractor by quick connectors. Positioning of the machine is by spirit-level. Hammering of the stakes is in the tractor's axis.


SPECIFIKACE ZAPOJENÍ ZA TRAKTOR
Pieces
Without VAT
from 138 500 Kč

Availability:
P
We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.
Into production

Media

Pictures

Video

Technical parameters

Length:1,2 m
Width:1,5 m
Height:4,1 m
Weight:650 kg
Max. stake length:3 m
Max. stake diameter:0,2 m
Min. knocked in stake length:0,5 m
Hammer weight:270 kg
Tractor power from:60HP
Drive:tractor hydraulics
Hinge type:II - as specified by the customer
Control:Manual - hydraulically

PRODUCT LIST

Download product datasheet in PDF format:

Wiring specification for tractor

TYPE OF RACEd1 = Ø PINS BOTTOM HINGEd2 = Ø PIN THIRD POINTHEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.IIØ28mmØ25mm730mm
Tractor cat.IØ22mmØ19mm730mm
Small tractorØ22mmØ19mm530mm
Other
(own specification)

Accessories and spare parts

Rope for stake hammer

Accessories for harrows - Stake hammer

Rope Ø10mm, length 15m

Without VAT
1 500 Kč

STRIKING TIP

Accessories for harrows - Stake hammer

The steel striking tip for piercing stony ground to avoid of damaging of stake. Length 1m, diameter 80mm.

Without VAT
13 270 Kč

Rolled rope for stake hammer

Accessories for harrows - Stake hammer

Rope Ø10mm, length 15m. Longer rope lifetime compared to standard rope.

Without VAT
2 200 Kč
