Wood block chippers

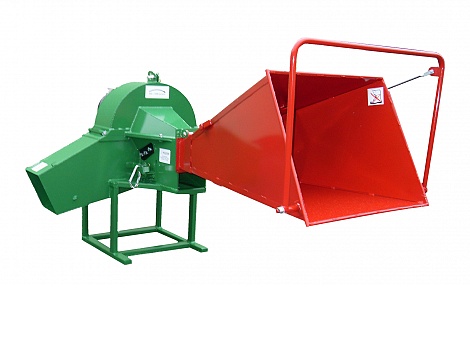

PIRANA LONGA WITH BLOWING

Kód výrobku: SP/TRA/02

Machine equipment is designed for crushing branches, wood and wood waste, using two-way self-feeding cutting screw. The screw is supported by the support bearing, which prevents its offset. The machine has automatic feeder all functions are turned on mechanically. Required tractor power from 20 kW and more. The wood chipper takes branches with leaves, needles, branched, dry, wet, and takes also boards and beams.

Connection to the three-point hitch of the tractor according to customer's specifications. When crushing the branches are inserted from behind the tractor and chips are blown to the side. The chip is blown by the chimney to the ground or to the crate. Into the bag by chimney(accessory).

The receiving hopper  for inserting of branches is equipped with safety brake. When it is pressed, the brake is stucked into the inserted material and the feeder is stopped.

The final chip is suitable for heating in a boiler or fireplace, soil fixing and possibly for other purposes. The chip is asymmetrical and airy, so beautifully swells, does not mould and its calorific value is very high.


WIRING SPECIFICATIONS FOR TRACTOR
Pieces
Without VAT
from 61 500 Kč

Availability:
P
We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.
Into production

Media

Pictures

Video

Technical parameters

Length:1 780 mm
Width:1 120 mm
Height:1 650 mm
Weight:250 kg
Cutting mechanism:two-way auger
Maximal crushed material diameter:max Ø 7 cm
Chip length (not adjustable):log length 15 cm
Power:5 m3/hour
Wood chips output:Output blow
Emergency brake:Yes
Tractor power from:10 kW
Cardan RPM:540 - 1000 RMP
Hinge type:I a II - as specified by the customer
:

PRODUCT LIST

Download product datasheet in PDF format:

Wiring specification for tractor

TYPE OF RACEd1 = Ø PINS BOTTOM HINGEd2 = Ø PIN THIRD POINTHEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.IIØ28mmØ25mm730mm
Tractor cat.IØ22mmØ19mm730mm
Small tractorØ22mmØ19mm530mm
Other
(own specification)

Accessories and spare parts

CARDAN 70CM

Accessories for harrows - Chippers

Without VAT
5 000 Kč

BAGGING CHIMNEY PIRANA LONG

Accessories for harrows - Shredders

The bag can be attached to the bagging chimney, into which the chips are blown. When filled, the bags are unhooked and stored.

Without VAT
7 590 Kč
140

BAG 70x100 cm

Workshop - Bags

Suitable for chips storage. Chip is not closed, but is aerated, beautiful becomes dry and its calorific value is very high.

Without VAT
16 Kč
