Winches

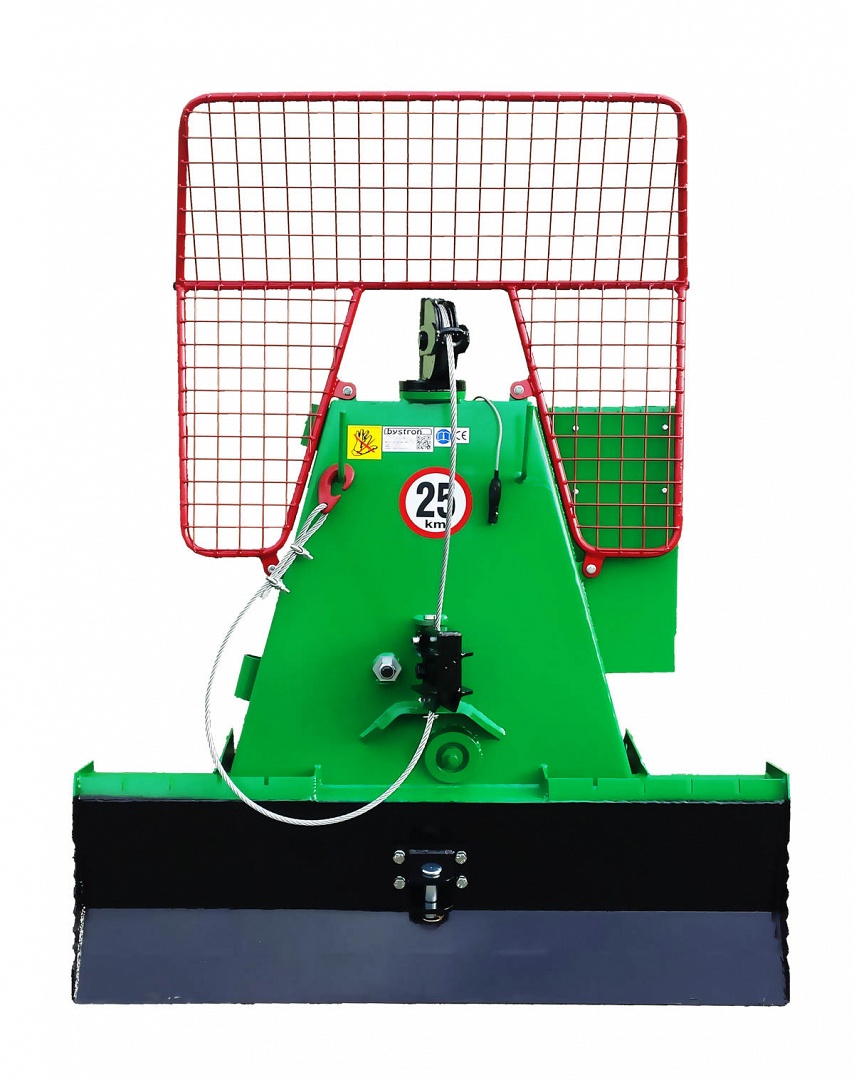

WINCH 4T WITH WIRELESS REMOTE CONTROL

Kód výrobku: LA/TRA/02

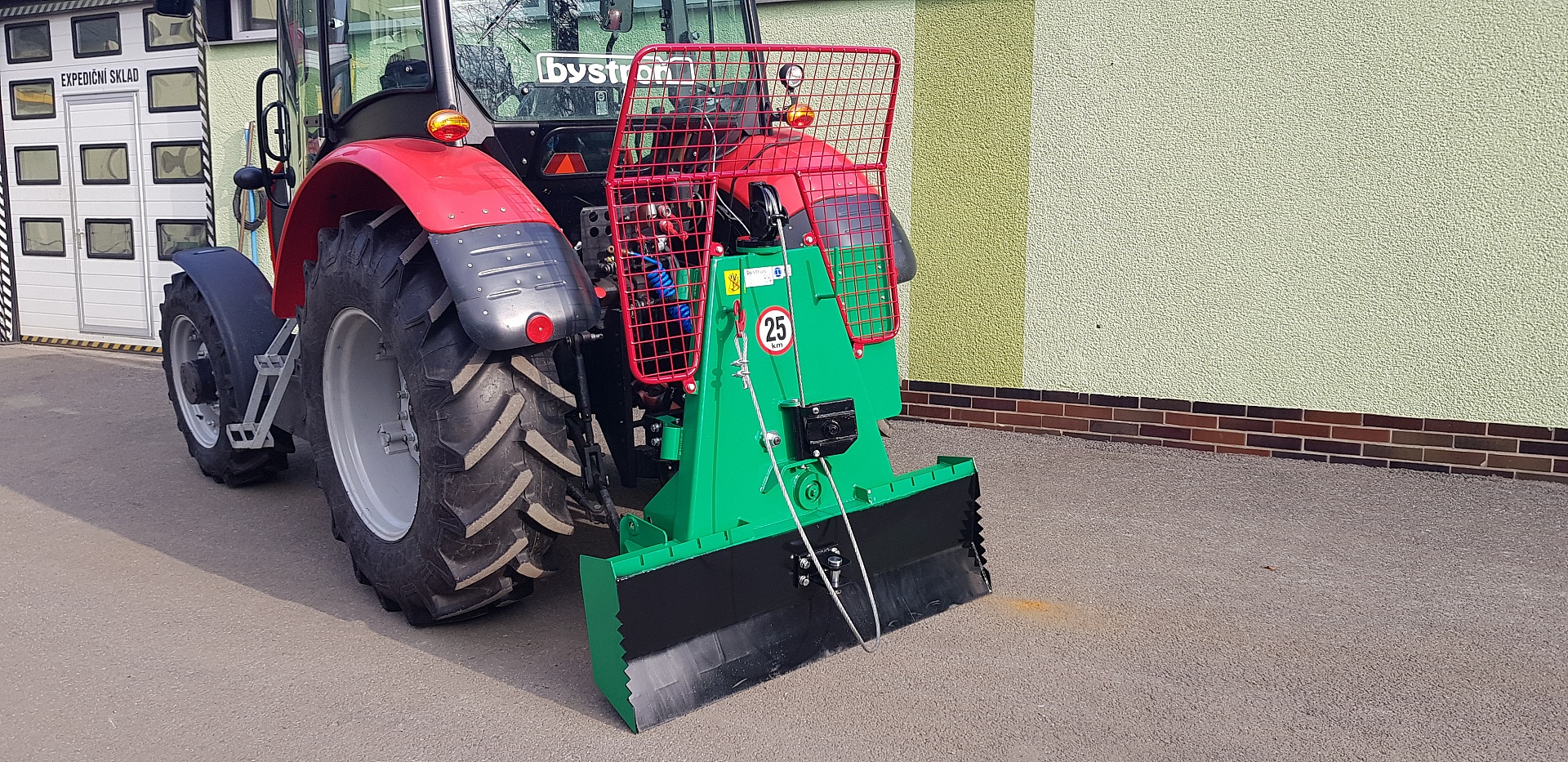

Steel rope winch is designed for pulling and approaching wood. Connection to the three-point hitch of the small tractor. The overall structure is welded and reinforced with thickened materials to form a unit resistant to bending, cracking and other damage.

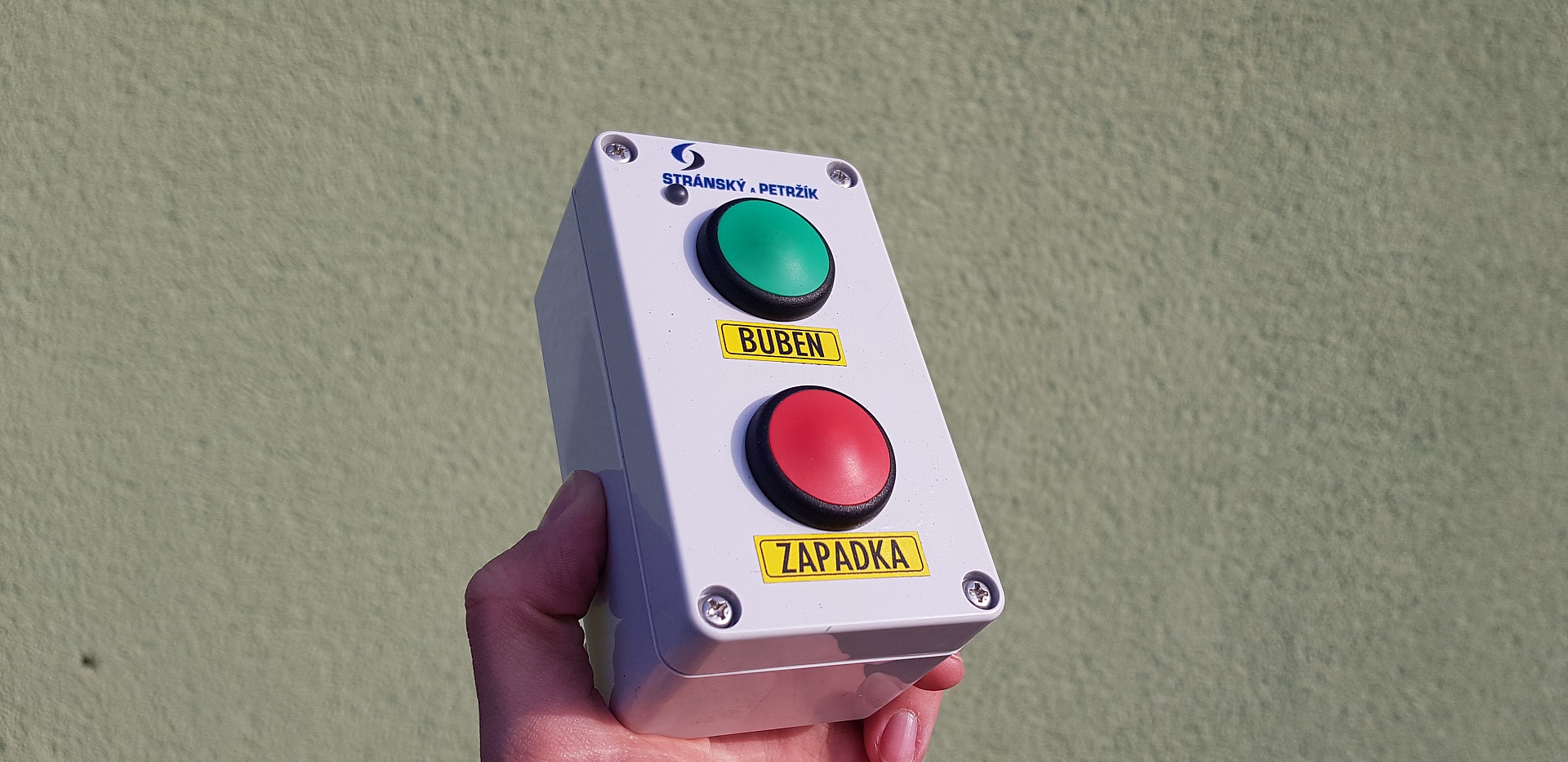

The rope winding is controlled remotely by a wireless transmitter with a reach of 60m. Two pneumatic cylinders are controlled, firts controls the winch clutch (rope winding) and second cylinder the brake (ratchet).

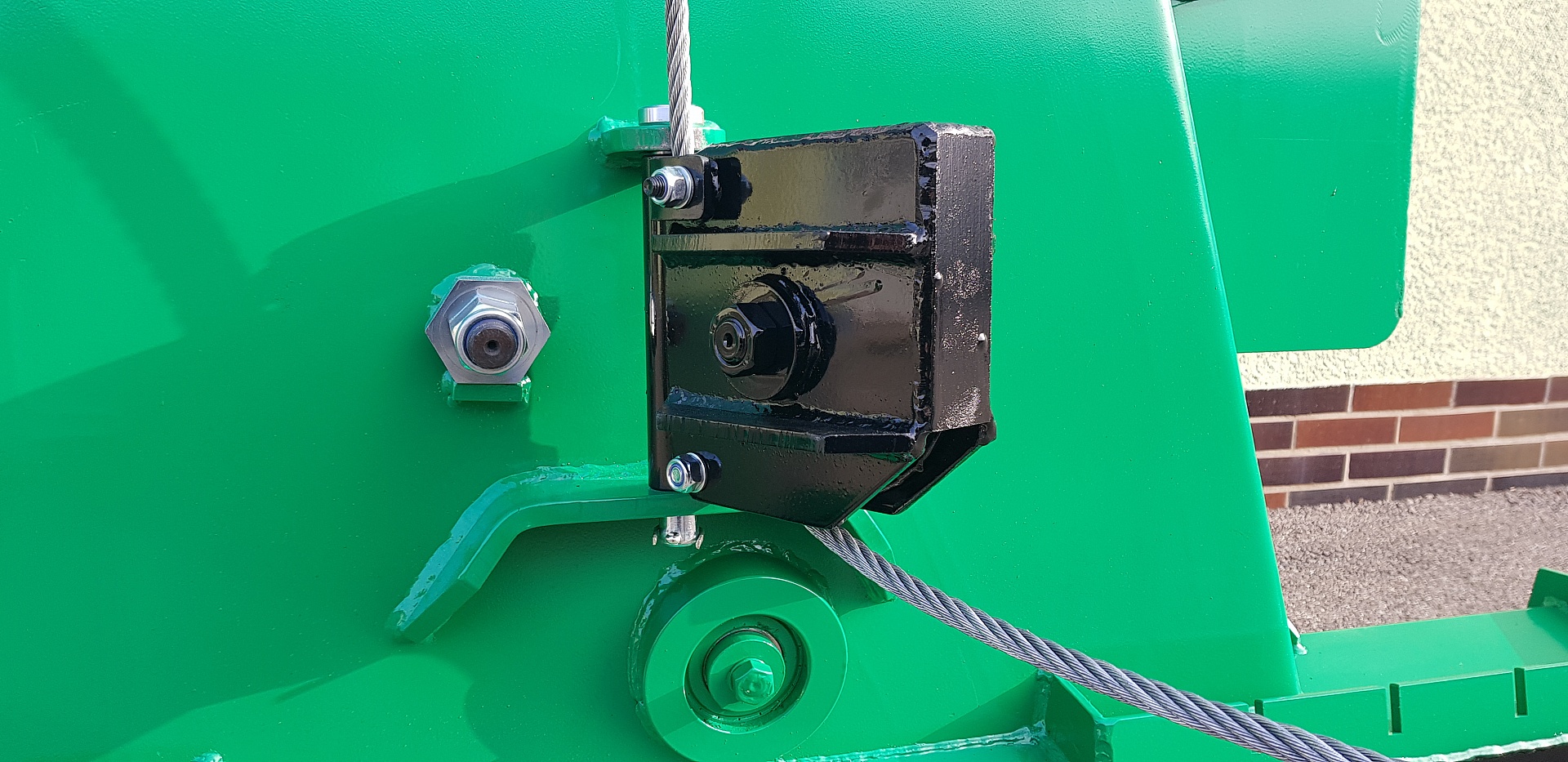

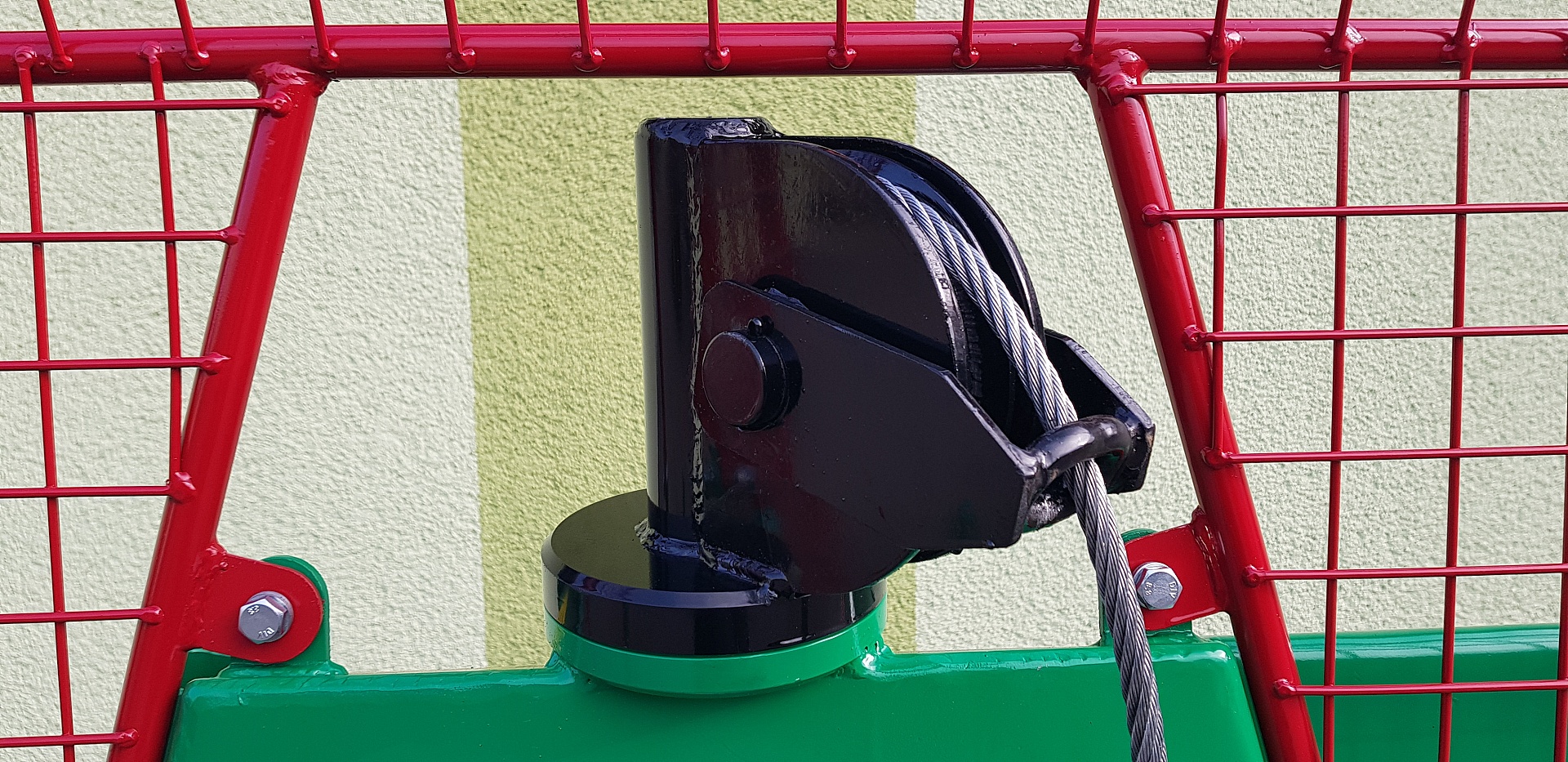

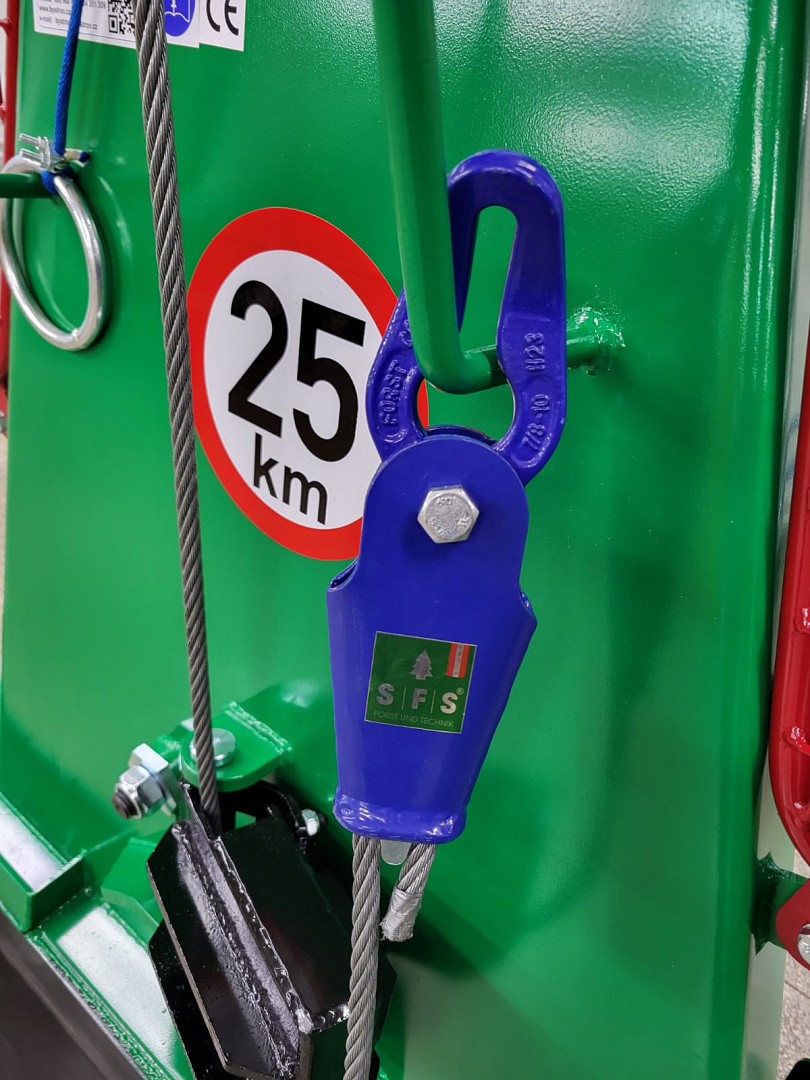

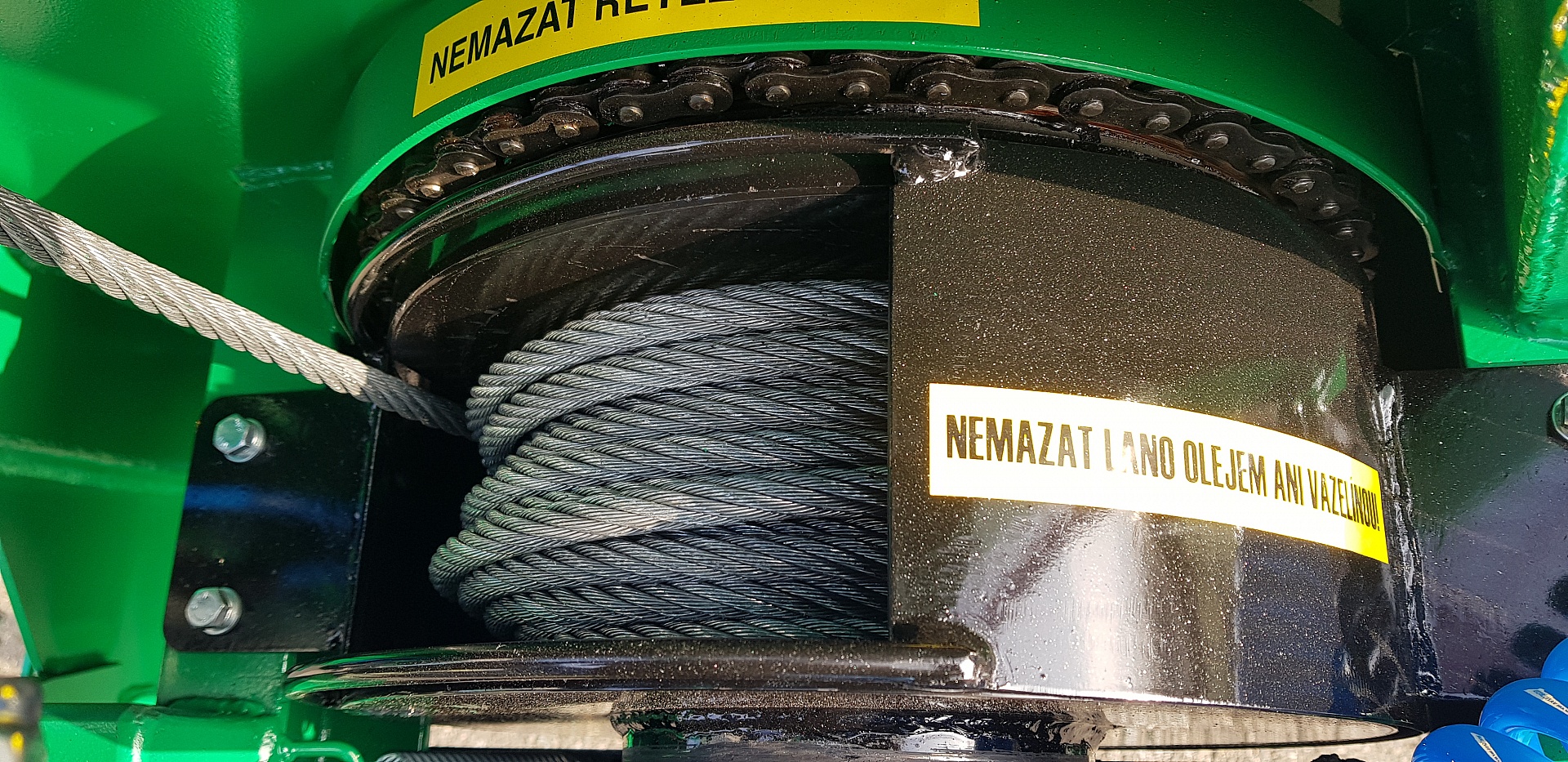

The rope is winded directly onto the cylinder of the machine. As a brake we have a ratch - a latch. The rope is leaded by the top swivel pulley and the lower swivel pulley. The top pulley is mounted on the bearing, the lower pulley is lightly attached to the pin and the rope can be unhooked.


WIRING SPECIFICATIONS FOR TRACTOR
LANA TYPE
Pieces
Without VAT
from 97 990 Kč

Availability:
P
We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.
Into production

Media

Pictures

Video

Technical parameters

Depth:0,7 m
Width:1,5 m
Height with net:2,2 m
Weight:310
Tractive force:4t.
Brake (ratchet):100% efficiency
Average winding speed:0,9m/s
Standard rope:rope Ø11,2mm/45m - SEAL, strength 70,7kN
Rope alternative included in price:rope Ø10mm/60m -SEAL, strength 58,4kN
Rope alternative (no included in the price):rope Ø10mm/60m - rolled, strength 103kN
Remote control:Wireless transmitter
Tractor power from:25HP
Cardan RPM:540 RMP
Hinge type:II - as specified by the customer
Bottom rotary pulley:Yes

PRODUCT LIST

Download product datasheet in PDF format:

Wiring specification for tractor

TYPE OF RACEd1 = Ø PINS BOTTOM HINGEd2 = Ø PIN THIRD POINTHEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.IIØ28mmØ25mm730mm
Tractor cat.IØ22mmØ19mm730mm
Small tractorØ22mmØ19mm530mm
Other
(own specification)
