Tree Transplanter - Bobcat

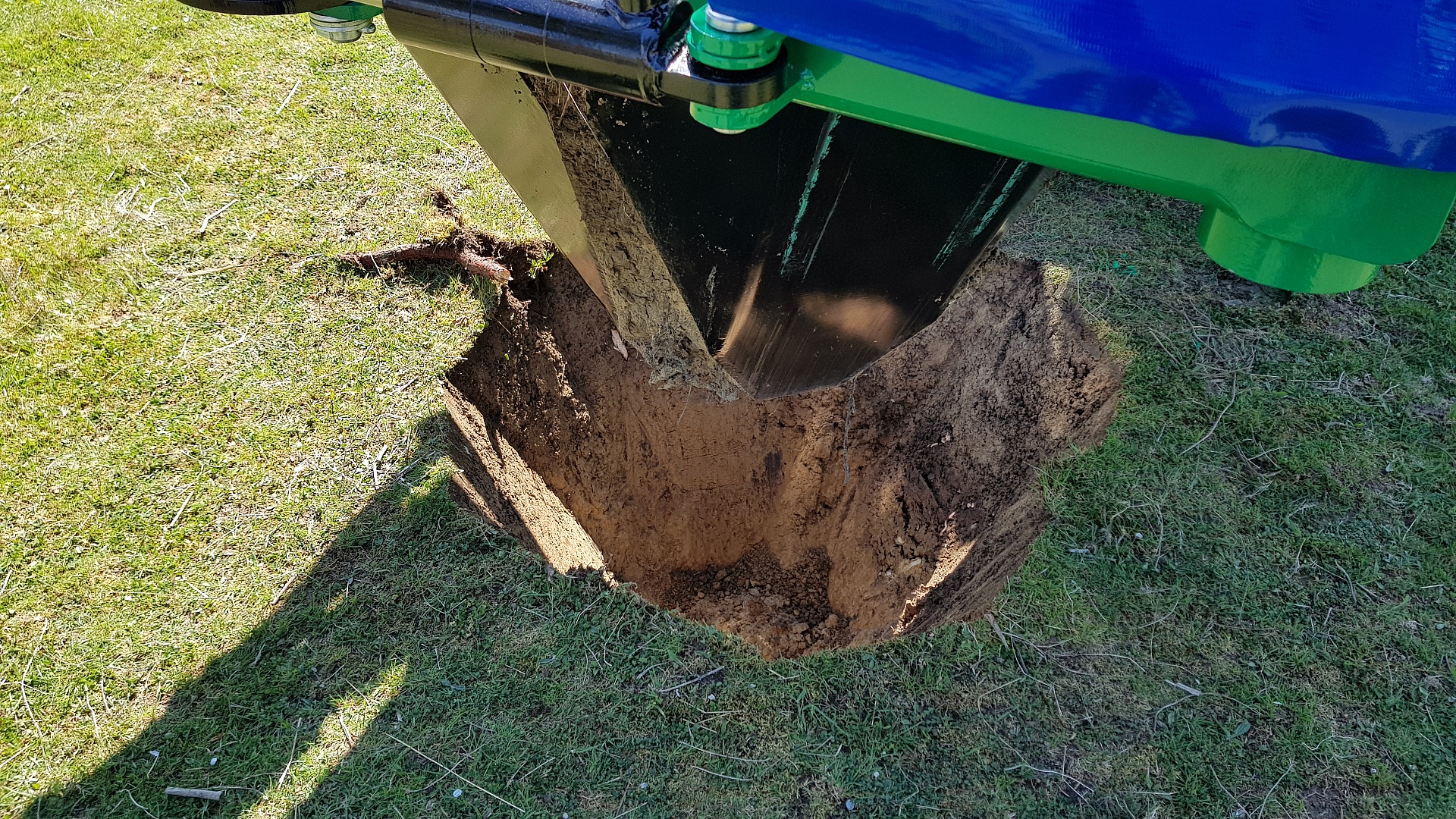

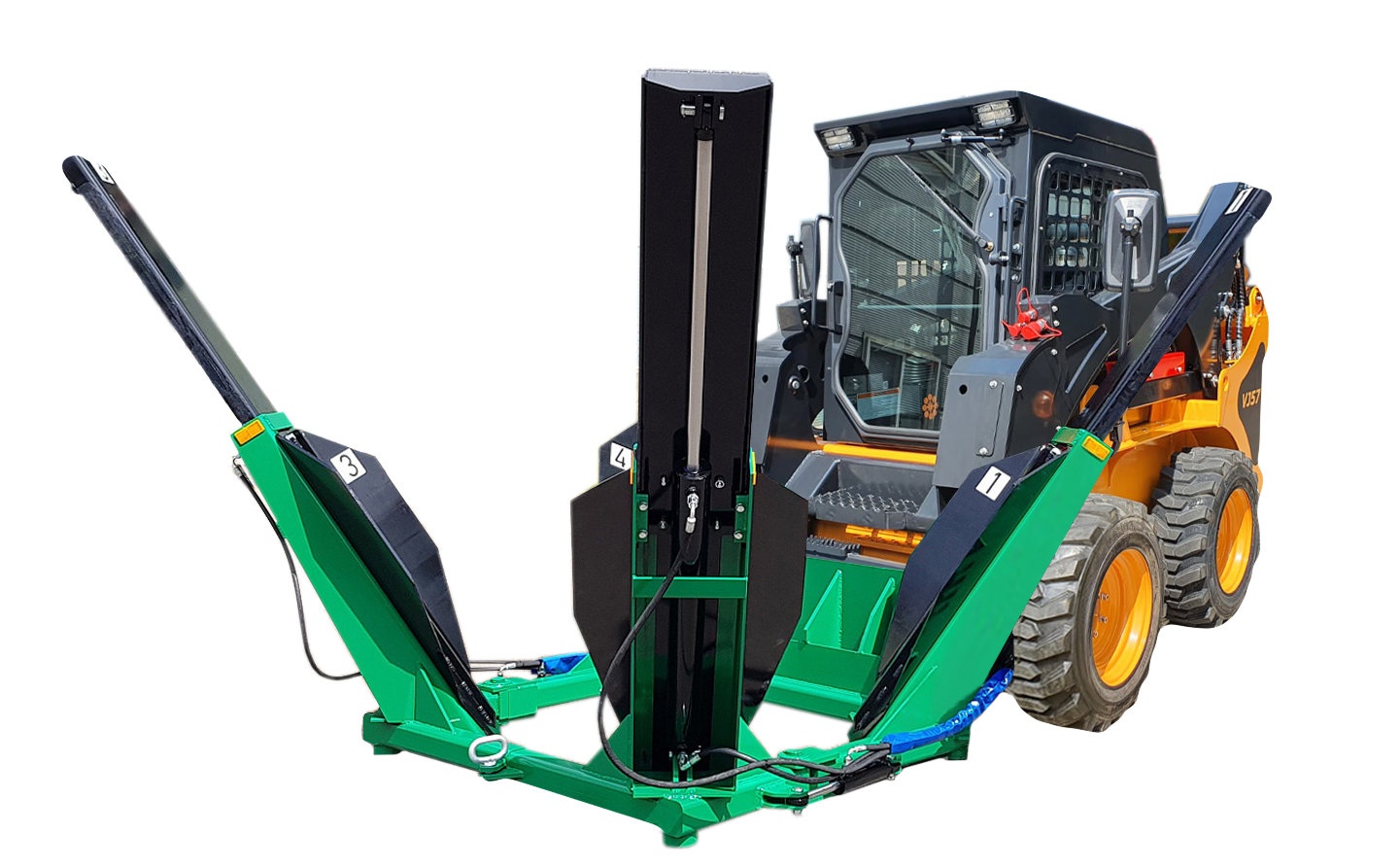

A machine for transplanting mature trees up to 10 cm trunk diameter. The machine is connected and carried by a front loader. The type of front loader is always made to order according to the customer's specification and the required specifications. The individual functions of the transplanter are controlled hydraulically. The machine is connected via quick couplers to the hydraulic circuit. The following can be individually controlled on the machine: spade movement 1 to 4, frame opening and frame lock. The front loader is used to lift the transplanter and also to control the deflection.

All functions are controlled by a hydraulic switchboard on the side of the machine. Newly we produce a variant with remote control, where there is a remote control in the driver's cab through which the machine can be controlled directly from the cab.
The overall construction is welded and reinforced with heavy-duty materials, making the whole resistant to bending, cracking and other damage.

The machine is suitable for mature trees with trunks up to 10cm. With the transplanter, the tree can be removed from the soil without disturbing the root system and transplanted to another designated location. Great use in nurseries and other facilities aimed at maintaining and growing trees.
