Tree transplanter

TREE TRANSPLANTER

Kód výrobku: PR/ST/01

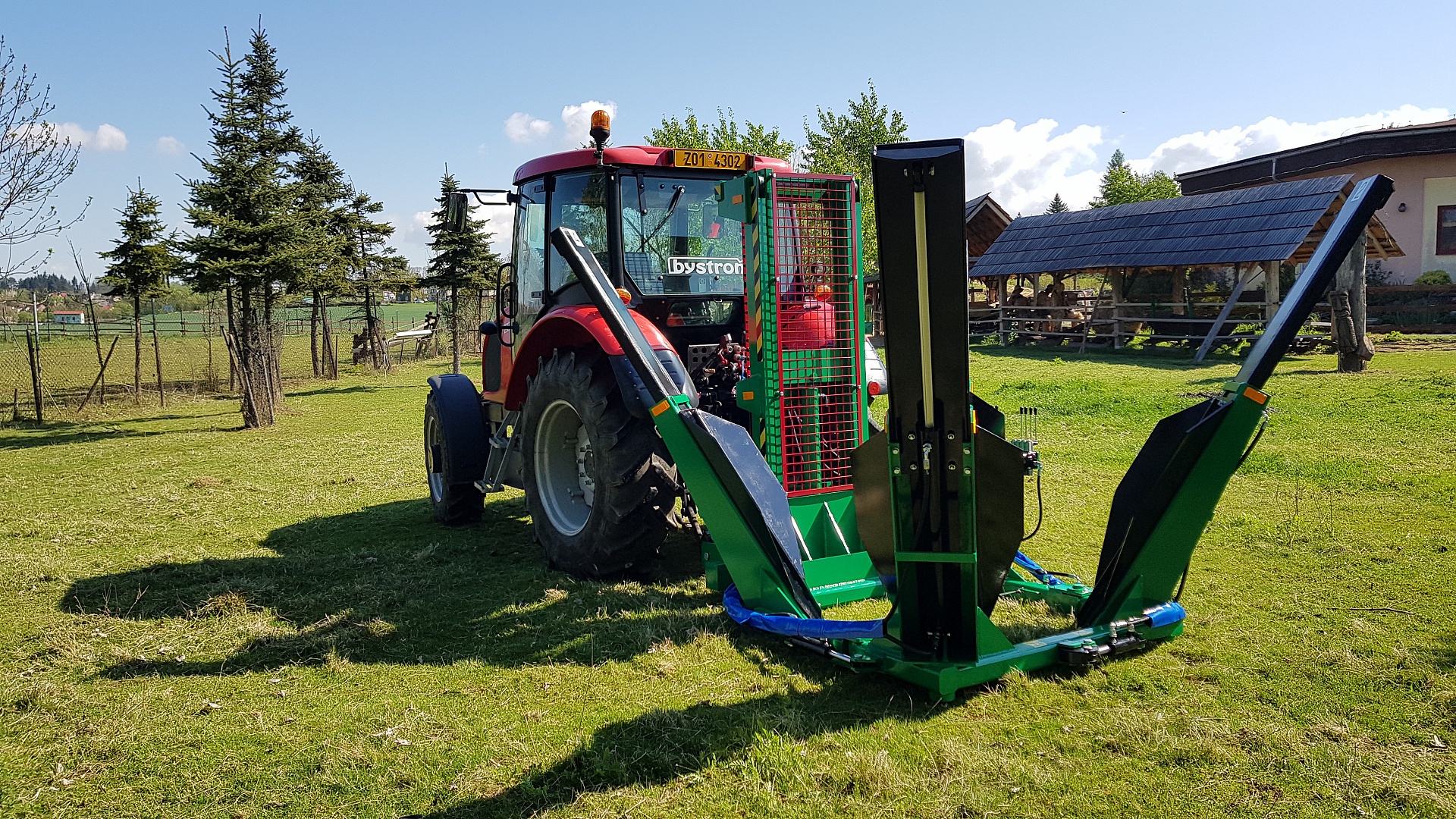

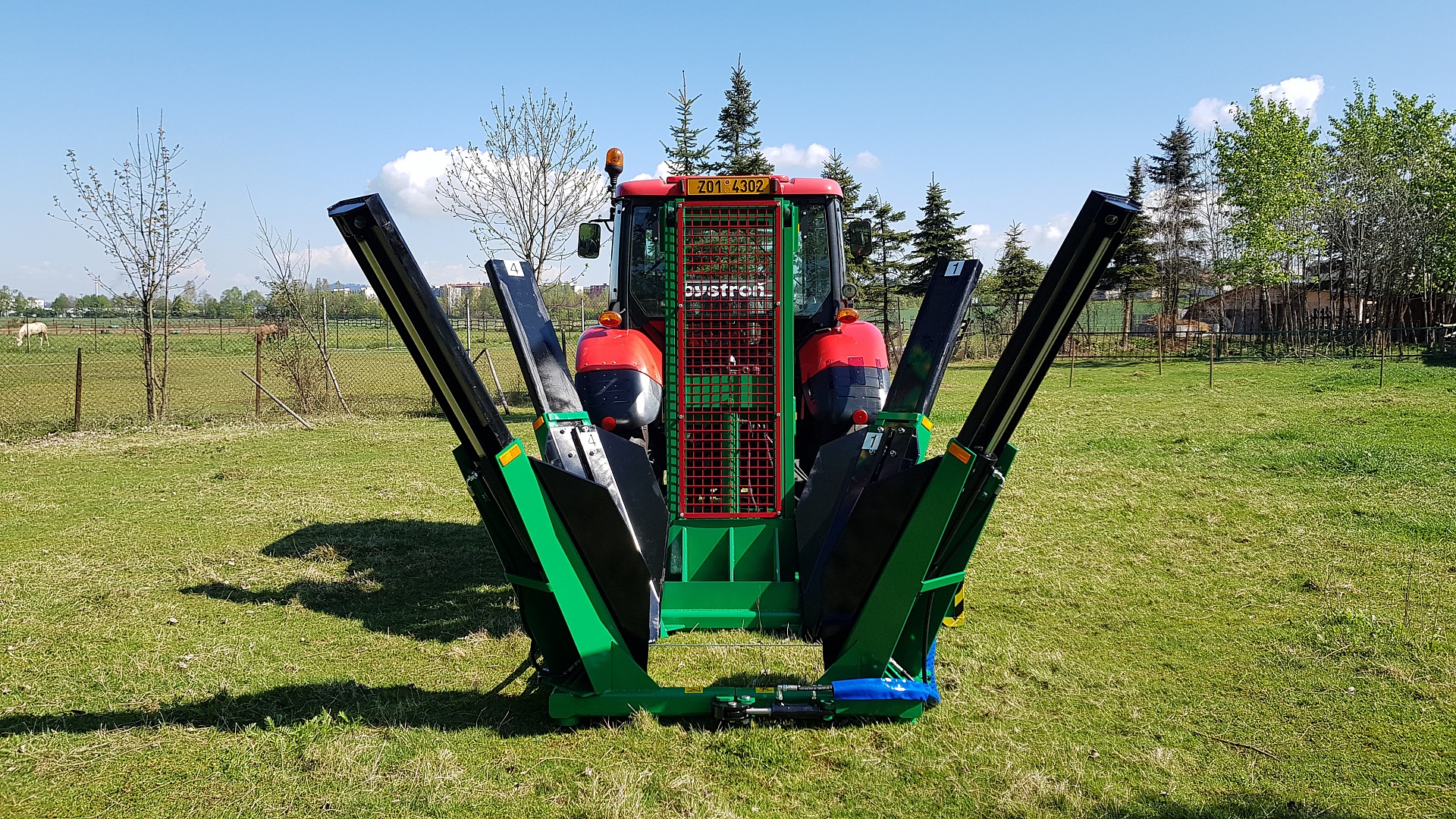

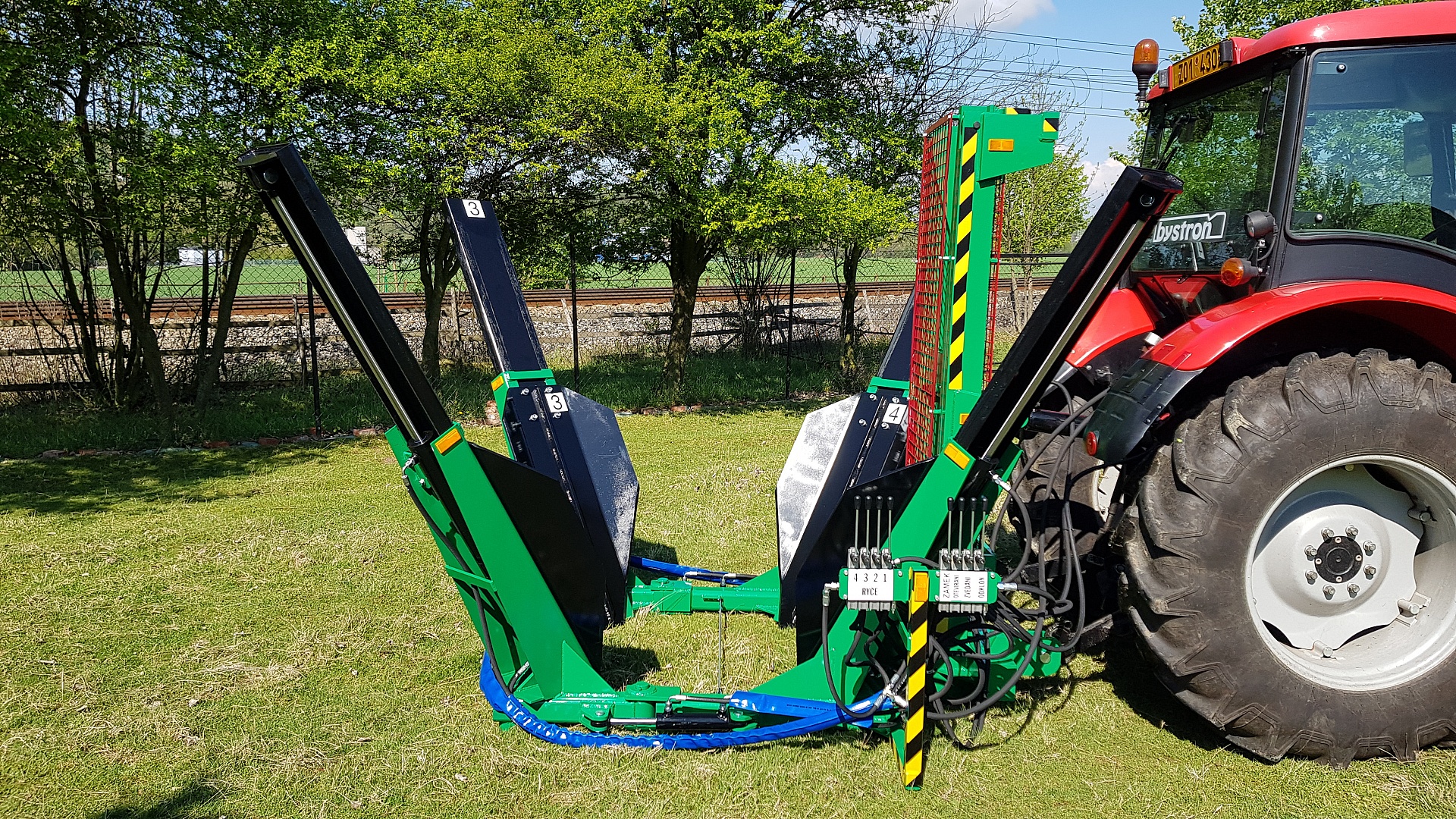

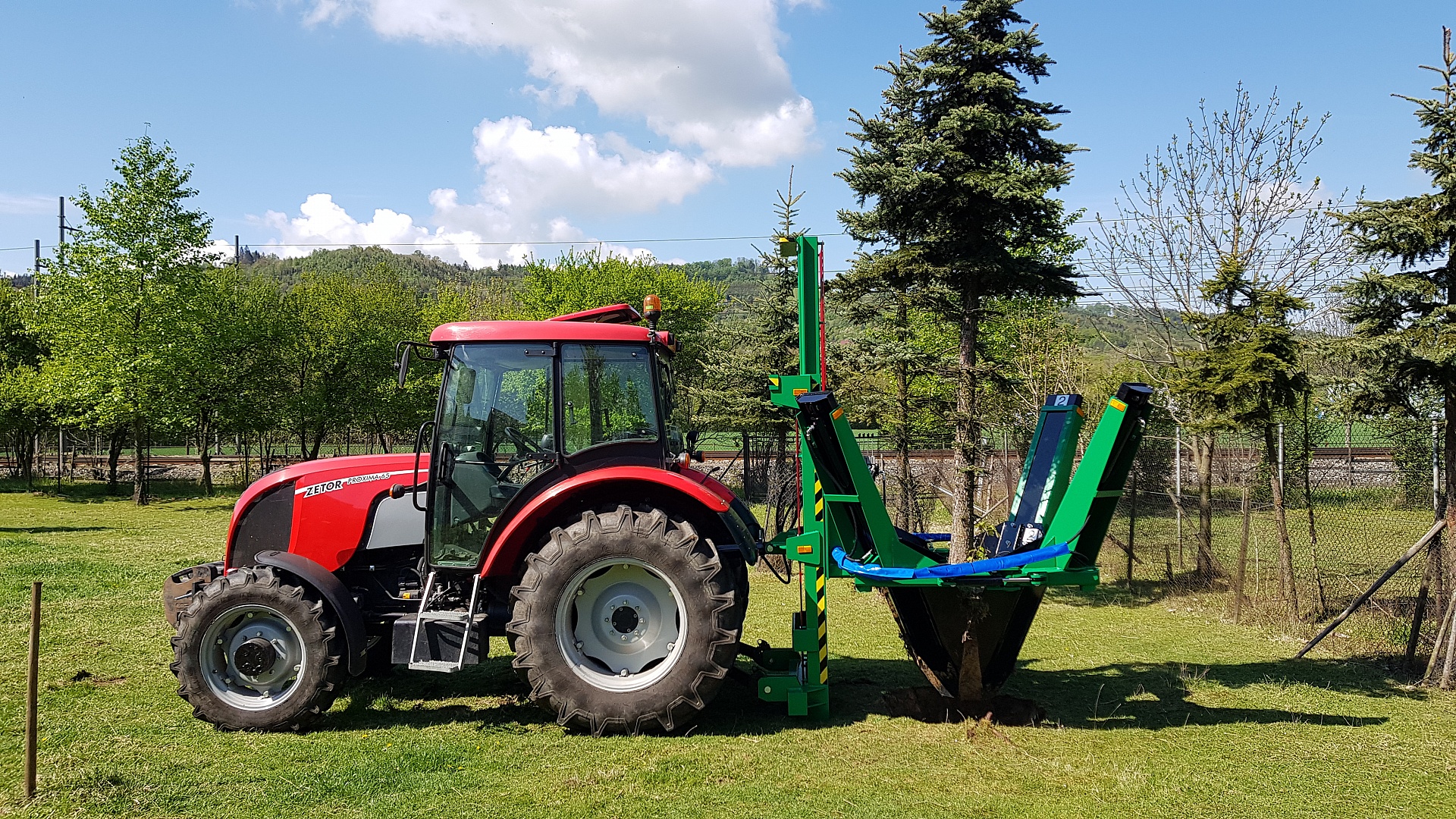

Transplanter is machine designed to transplanting of grown trees up to a trunk diameter of 15 cm. The machine is carried on the three-point hitch of the tractor and all functions are controlled by hydraulics. The machine is connected by quick connectors to the hydraulic circuit of the tractors.

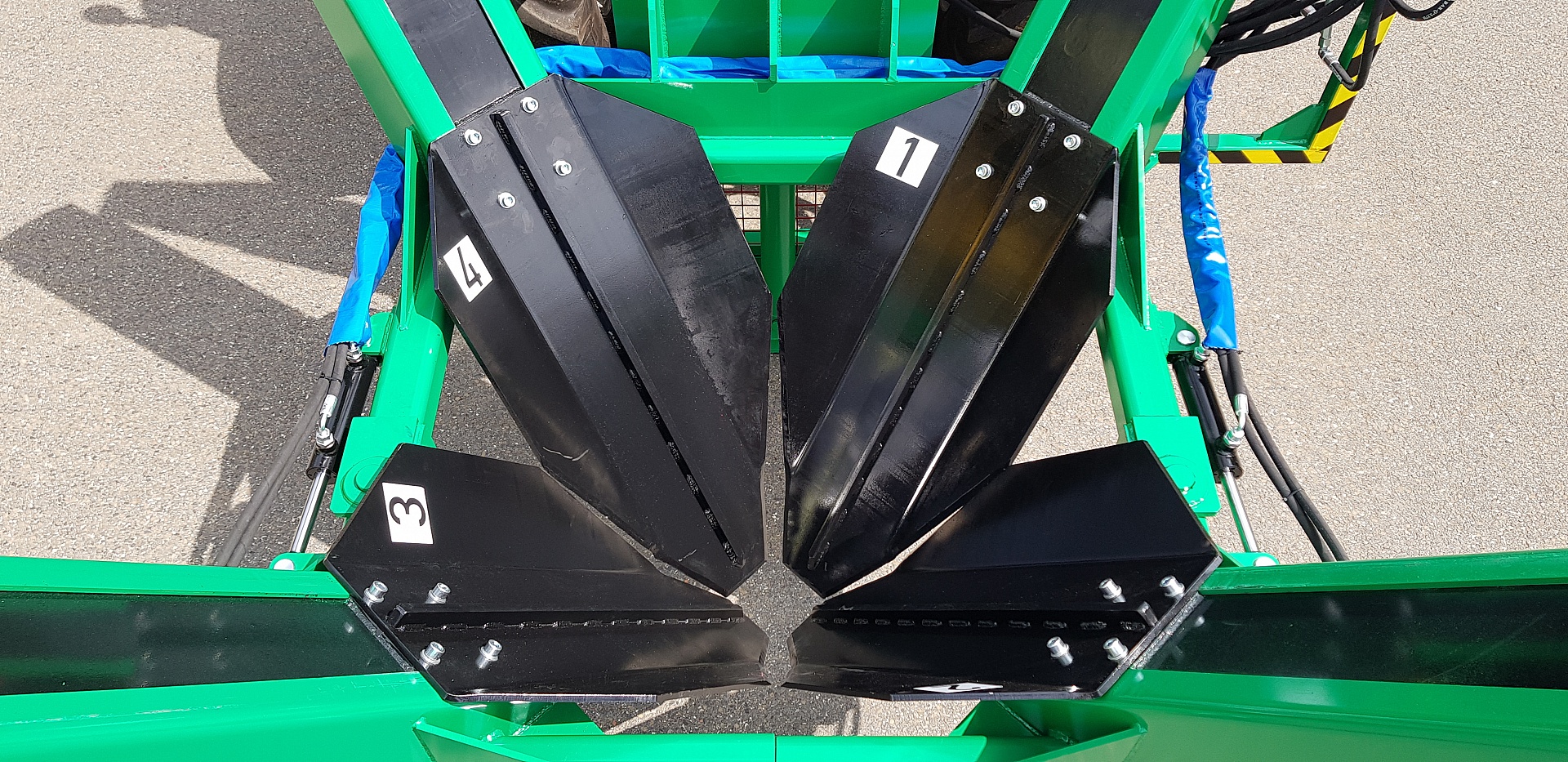

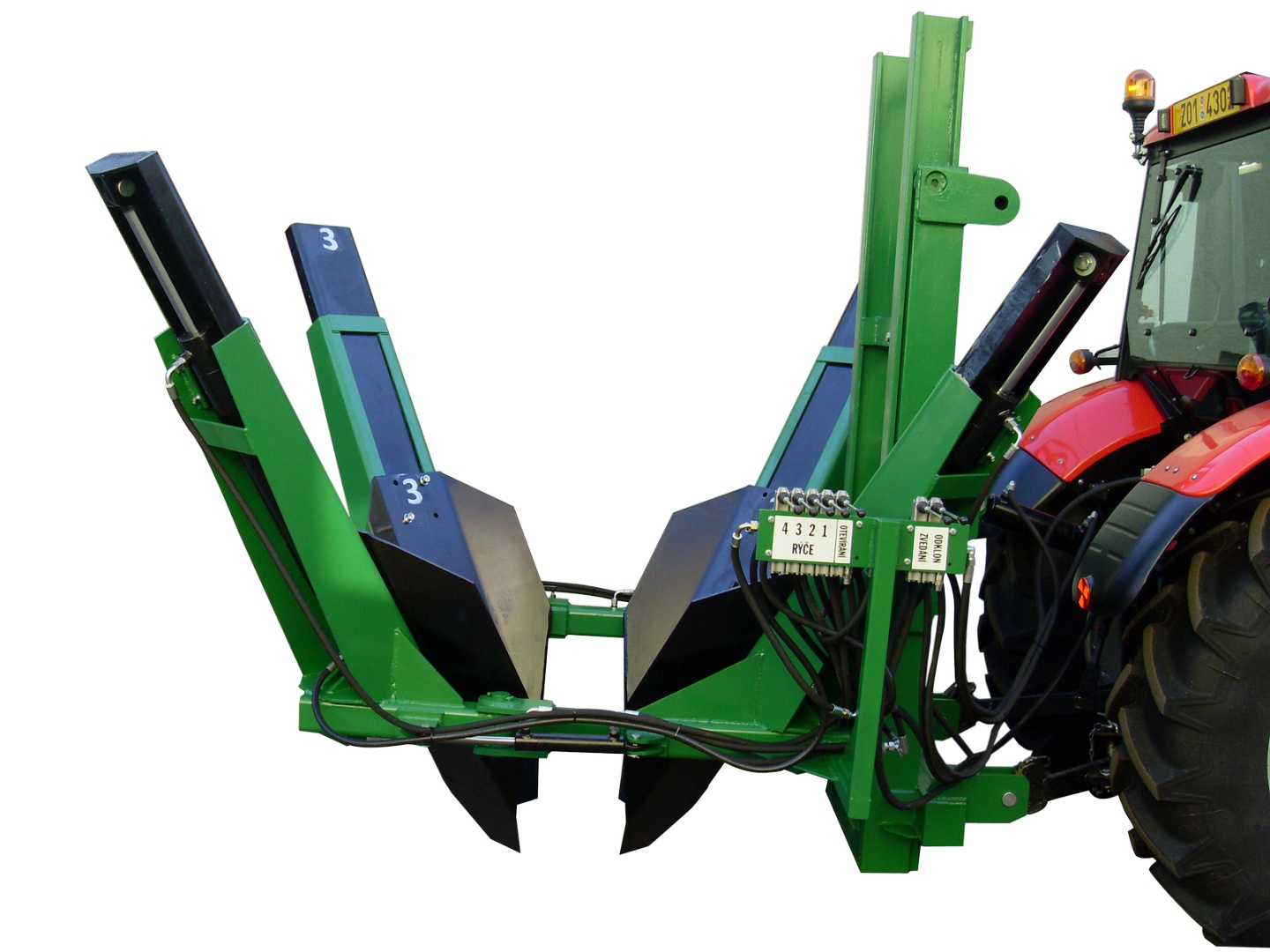

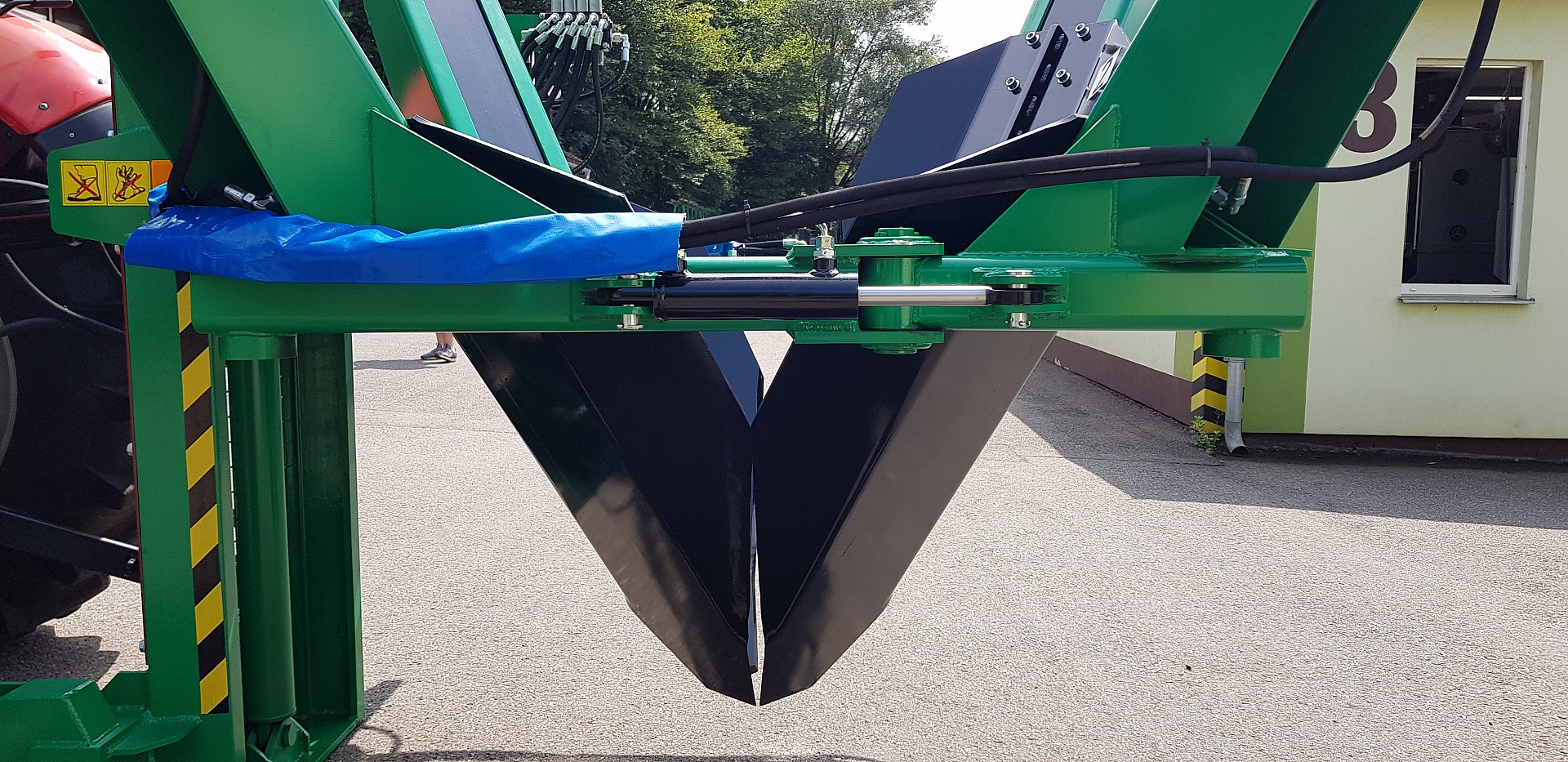

There can be individually controlled: Spade 1-4 movement, opening of space for tree, machine lifting, machine deflection and lock.

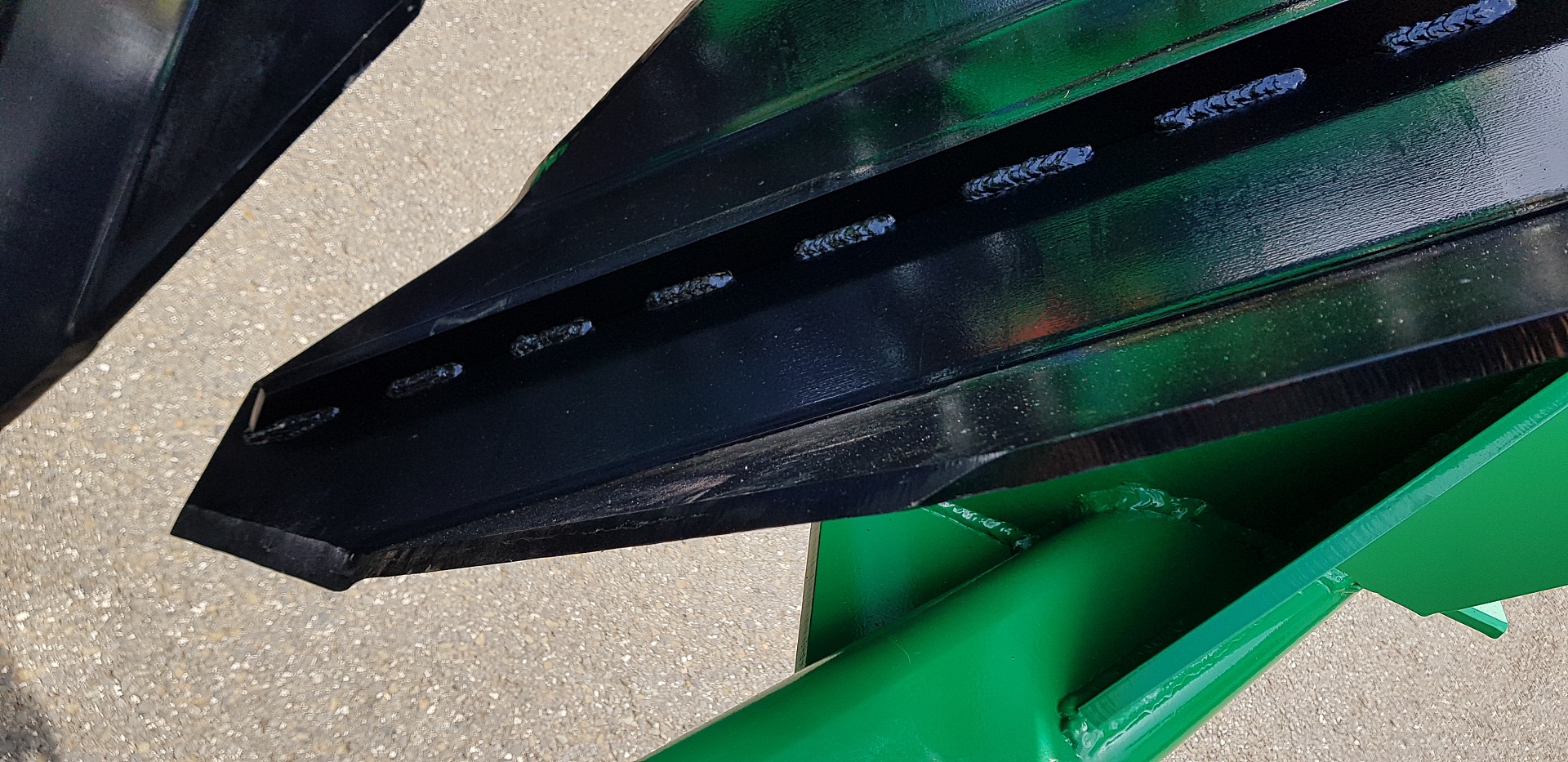

The overall structure is welded and reinforced with thick-walled materials, making it all resistant to bending, cracking and other damage.

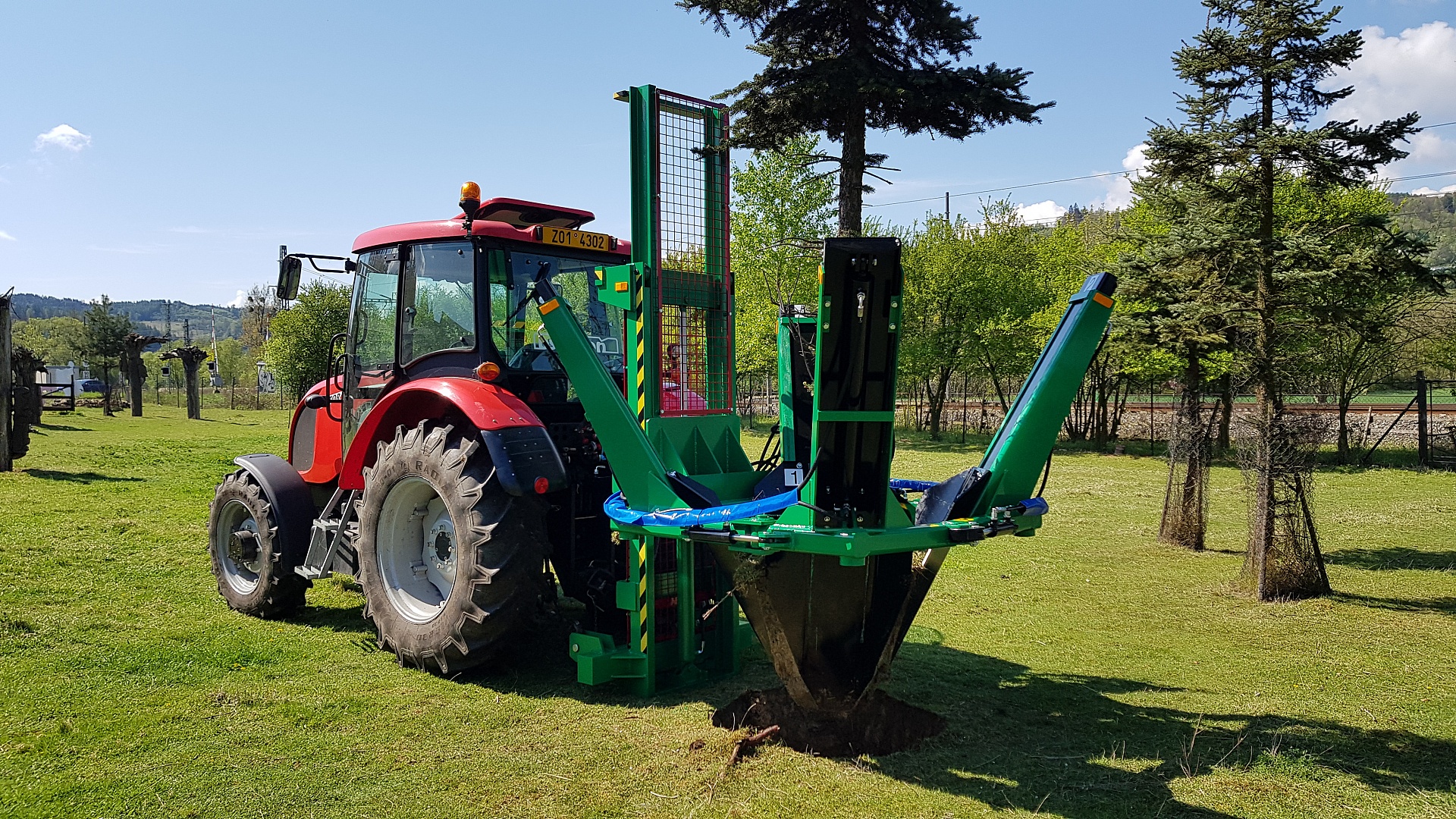

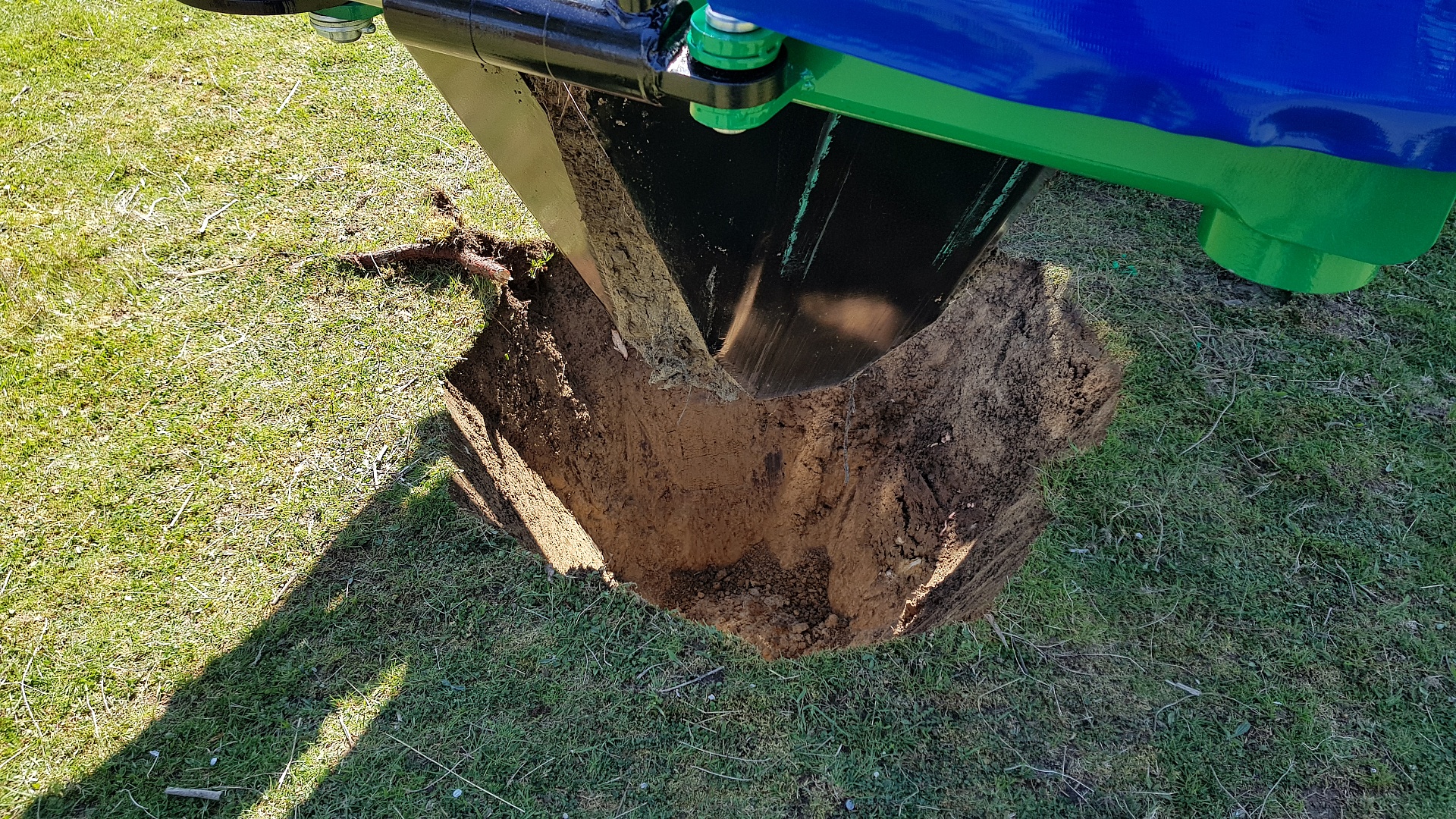

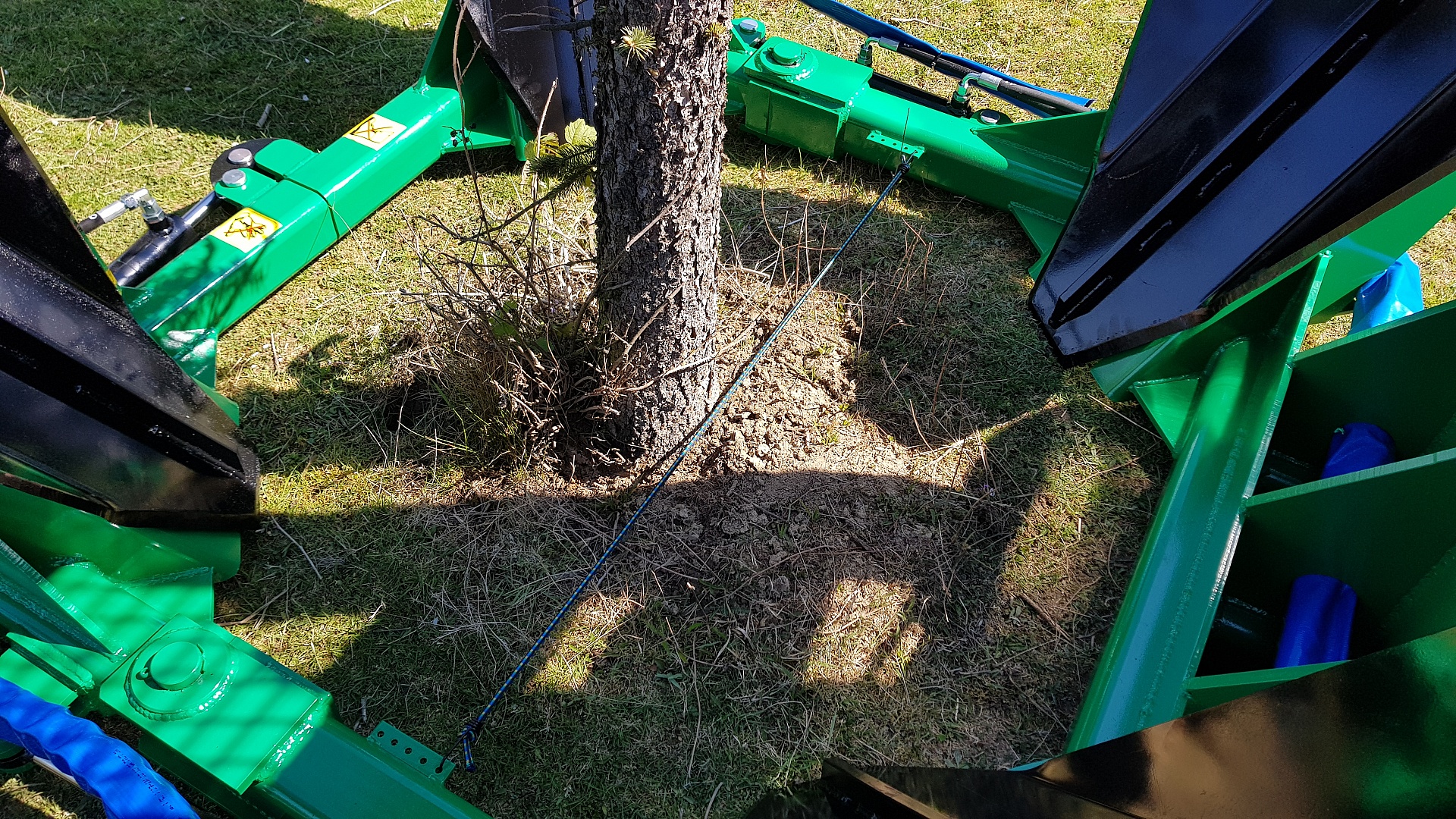

Using a Transplanter, the tree can be removed from the soil without disturbing the root system and transplanted to another designated location. Large use in forest and other facilities focused on growing trees.



TRACTOR CONNECTION
Pieces
Without VAT
from 409 990 Kč
from 368 991 Kč

Availability:
P
We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.
Into production

Media

Pictures

Video

Technical parameters

Length:2,7 m
Width:2,7 m
Height:2,7 m
Weight:1 200 kg
Tractor power from:80HP kW
Drive:Hydraulic circuit of tractor
Hinge type:II - as specified by the customer
Ground dig dimension:1,2m x 1,2m
Engraving depth:0,8m - 1m (depending on the slope)
Control:Manual - hydraulically
Control:Spade 1 - 4
Control:Openable cages
Control:Tilt
Control:Lifting

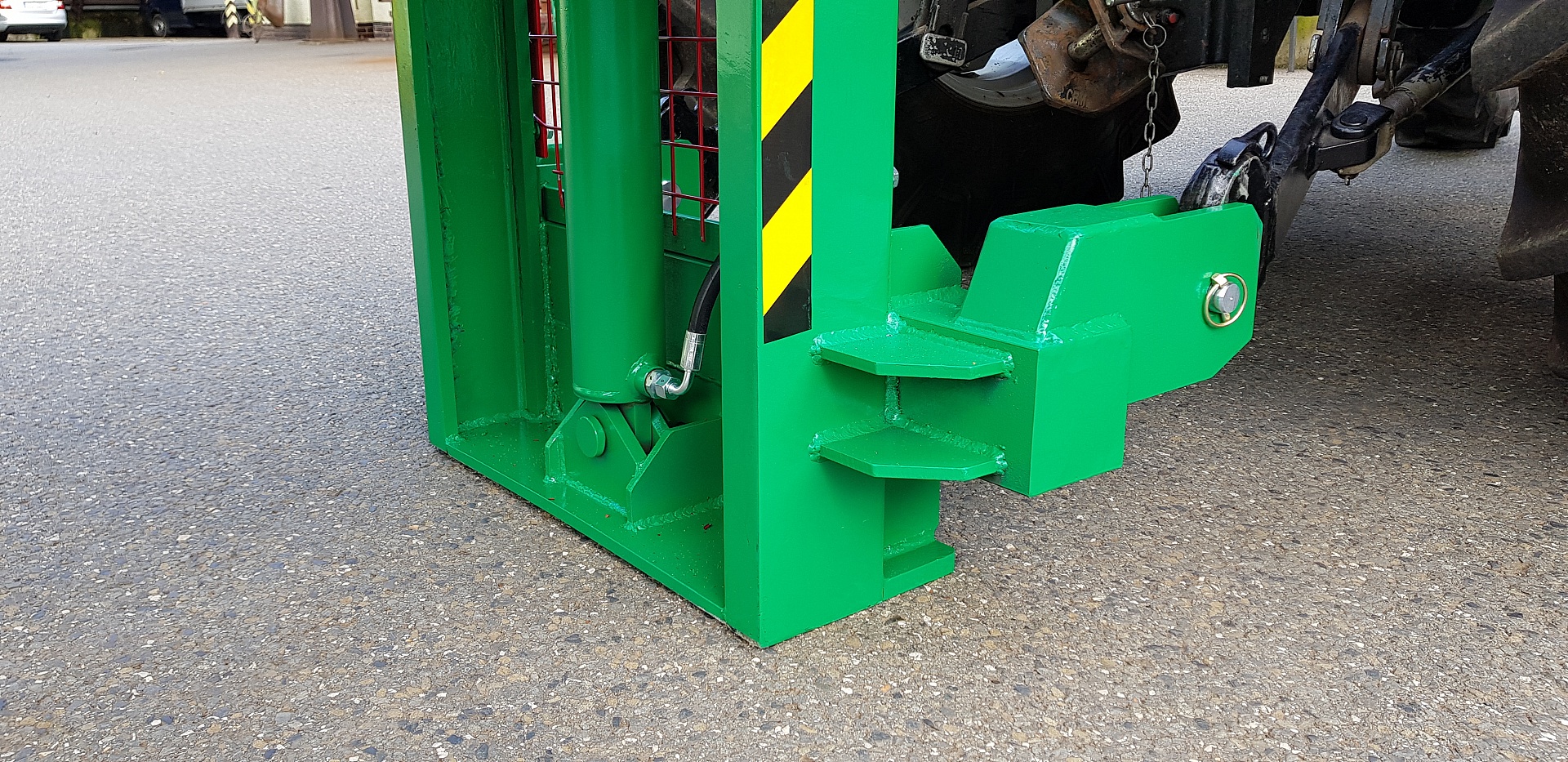

Control:Frame lock
Tree diameter:up to 15cm

PRODUCT LIST

Download product datasheet in PDF format:

Wiring specification for tractor

TYPE OF RACEd1 = Ø PINS BOTTOM HINGEd2 = Ø PIN THIRD POINTHEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.IIØ28mmØ25mm730mm
Tractor cat.IØ22mmØ19mm730mm
Small tractorØ22mmØ19mm530mm
Other
(own specification)
