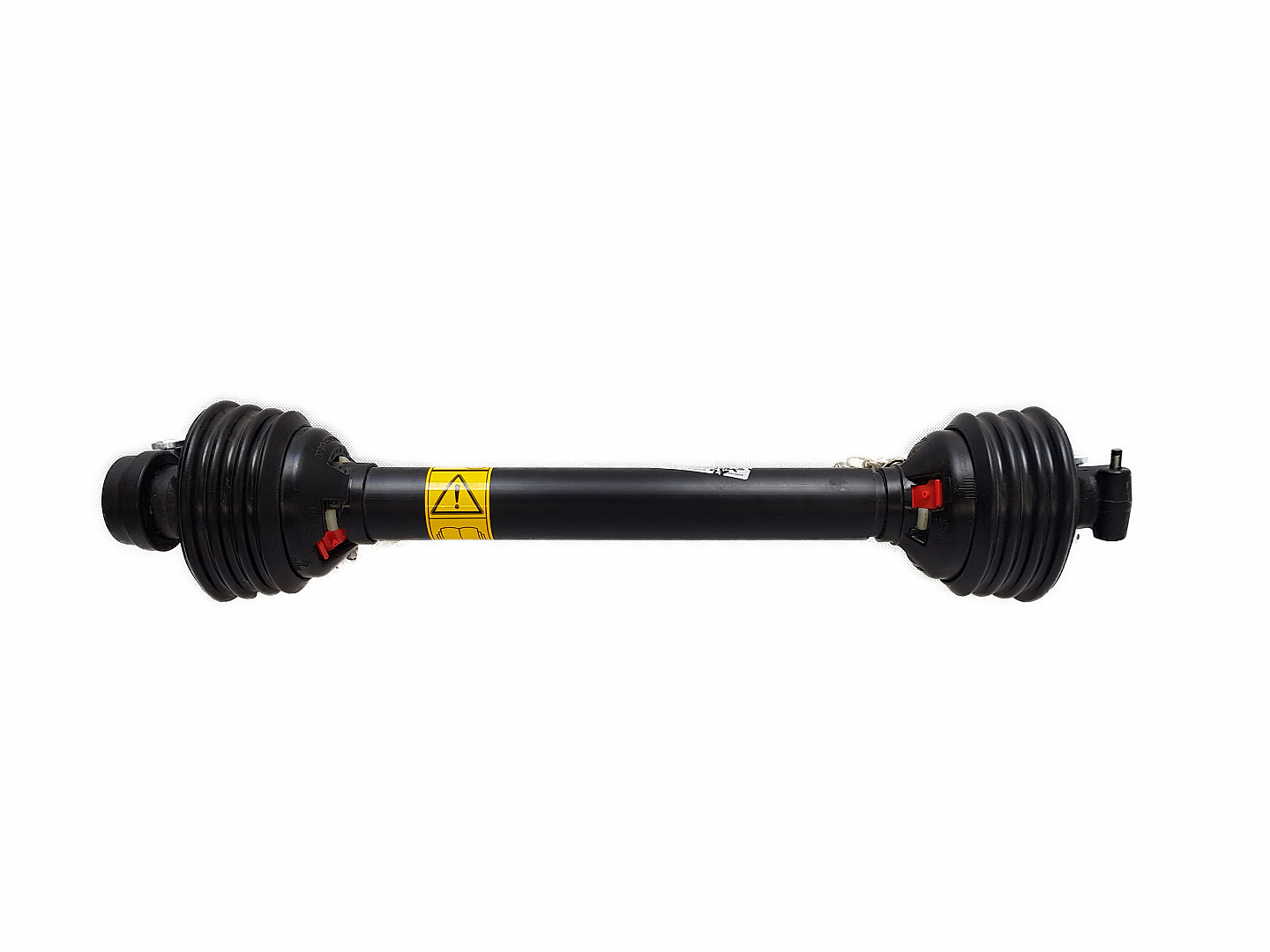

Drive shaft AW10, 560 mm

Drive shaft AW10, 560 mm

Dimension C 64 mm

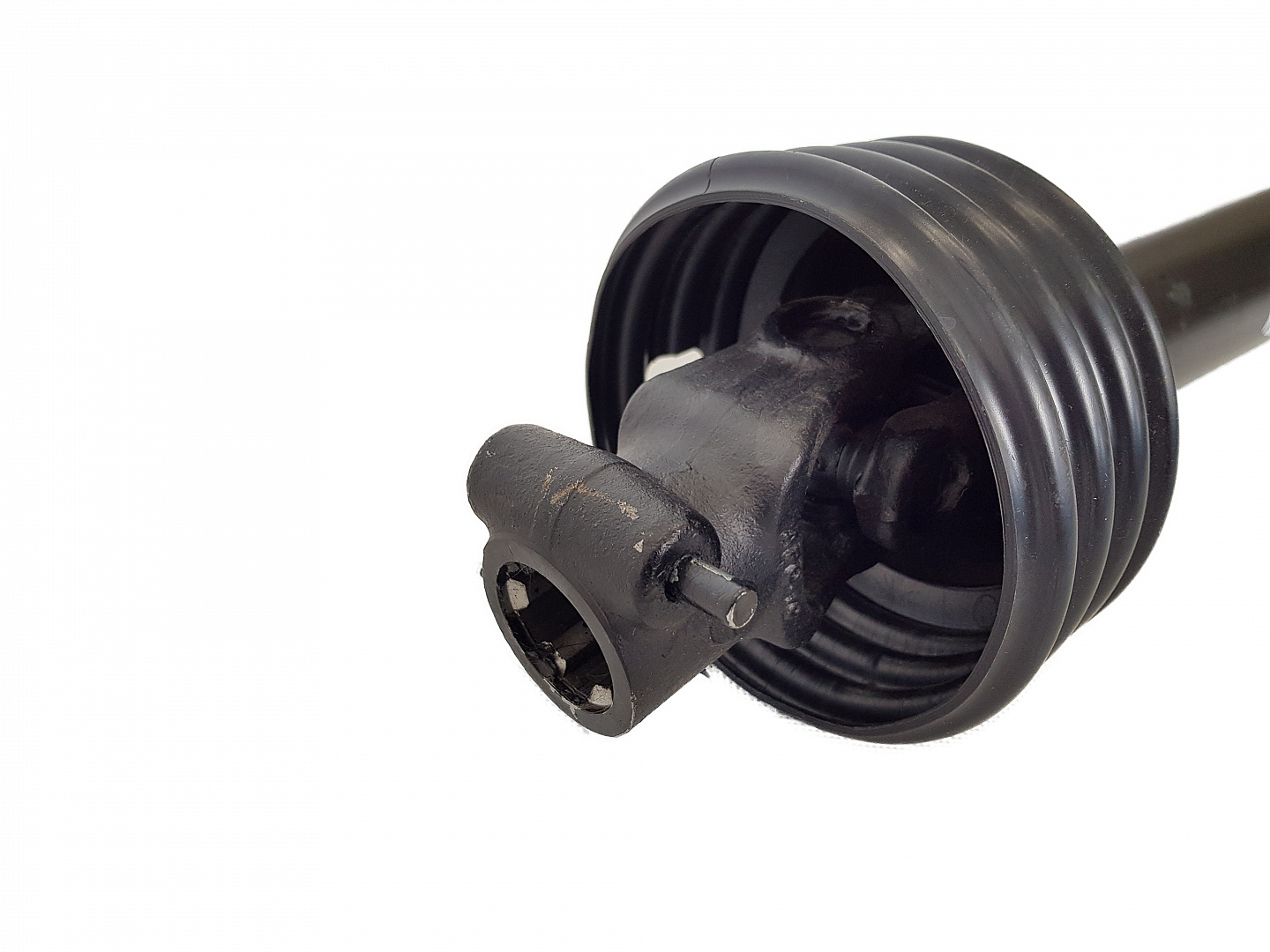

Machine side connection AG 1 3/8-6 mit Slide-Lock

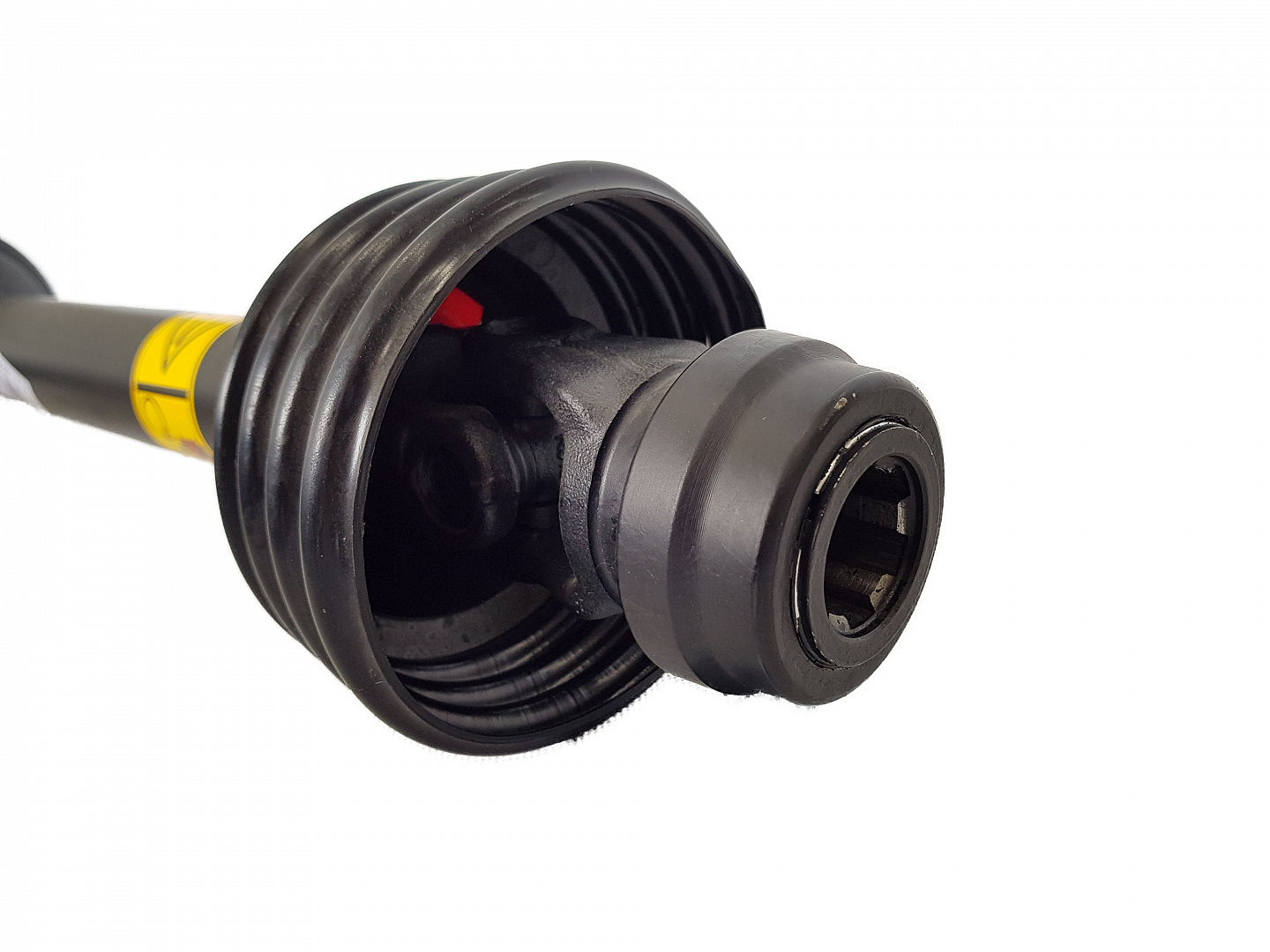

Connection on tractor side 1 3/8-6 Slide-lock fork

Design size Walterscheid 2100

Construction size Weasler AW10

Cross unit 22 x 54.8 mm

Length (L) max. 774 mm

Length (L) min. 560 mm

Power (PS) at 1000 rpm 13 Horsepower

Power (PS) at 540 rpm 8 Horsepower

Profile tube on machine side 30 x 3 mm

Profile tube on tractor side 23.5 x 3.5 mm
