Crushers MURENA WITH CONNECTION OF TROLLEY Bystroň

Kód výrobku: DR/TRA/02

-10%

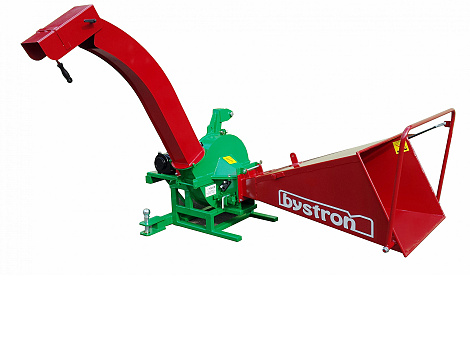

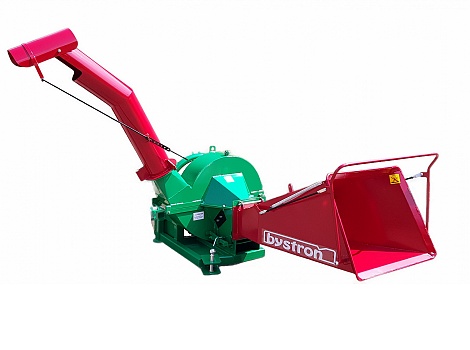

Machine for crushing branches, waste and wood waste. Crushing of the material is done by three knives screwed onto the flywheel of the machine. There are two feeding rollers connected to the tractor's hydraulic circuit. The feedrate can be controlled, which also adjusts the size - the length of the chips. Required tractor power from 20KW and more. The crusher takes branches with leaves, needle, branched, dry, wet and takes boards and beams.

Connection to the three-point hitch of the tractor according to customer's specifications. Possibility of connection the trolley to the tractor's lower hitch or directly behind the crusher. When crushing, the branches are inserted from the back of the tractor and the chips are blown into the free space. The chip is blown out of the adjustable chimney in the range of 360°.

The resulting chips are suitable for heating in boilers with screw feeders, mulching, composting, pressing.

WIRING SPECIFICATIONS FOR TRACTOR

Pieces

Without VAT

from 251 990 Kč

from 226 791 Kč

Availability:

We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.

Into production

Media

Pictures

Technical parameters

	Length:	1 400 mm
	Width:	1 500 mm
	Height:	1 900 mm
	Weight:	450 kg
	Cutting knives:	3pcs.
	Oposite blades:	1pc.
	Maximal crushed material diameter:	max Ø 100 mm
	Chip length (adjustable):	chip length 5-10 mm
	Power:	5 m³/hour
	Shift (adjustable):	Approx 0,3m/s
	Emergency brake:	Yes
	Tractor power from:	20 kW
	Cardan RPM:	540 - 1000 RMP
	Hinge type:	II - as specified by the customer
	:

Wiring specification for tractor

TYPE OF RACE	d1 = Ø PINS BOTTOM HINGE	d2 = Ø PIN THIRD POINT	HEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.II	Ø28mm	Ø25mm	730mm
Tractor cat.I	Ø22mm	Ø19mm	730mm
Small tractor	Ø22mm	Ø19mm	530mm
Other (own specification)

Accessories and spare parts

CARDAN 90CM

Accessories for harrows - Chippers

Without VAT

5 500 Kč

Murena knife

Accessories for harrows - Crushers Muréna

Knife of high hardness and quality for wood chipping. The knife is designed and developed specifically for the Muréna machine. There are a total of 3 pieces in the machine.

Without VAT

3 990 Kč

Screw for Murena knife

Accessories for harrows - Crushers Muréna

Screw for fixing the Murena knife. 4 screws are needed to fix 1 piece of knife.

Without VAT

46 Kč
