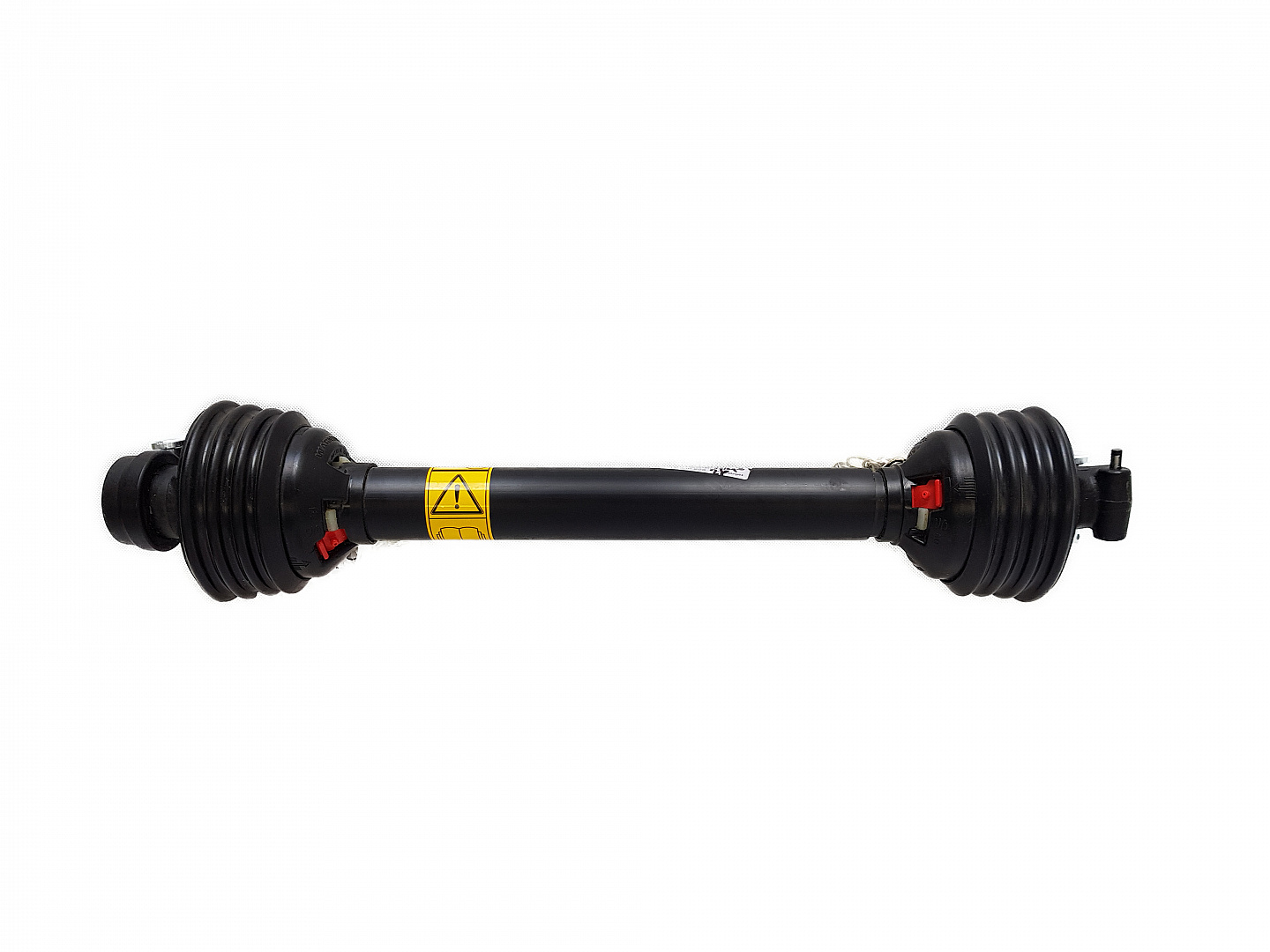

Drive shaft AW20, 760 mm

Drive shaft AW20, 760 mm,

Dimension C 72 mm

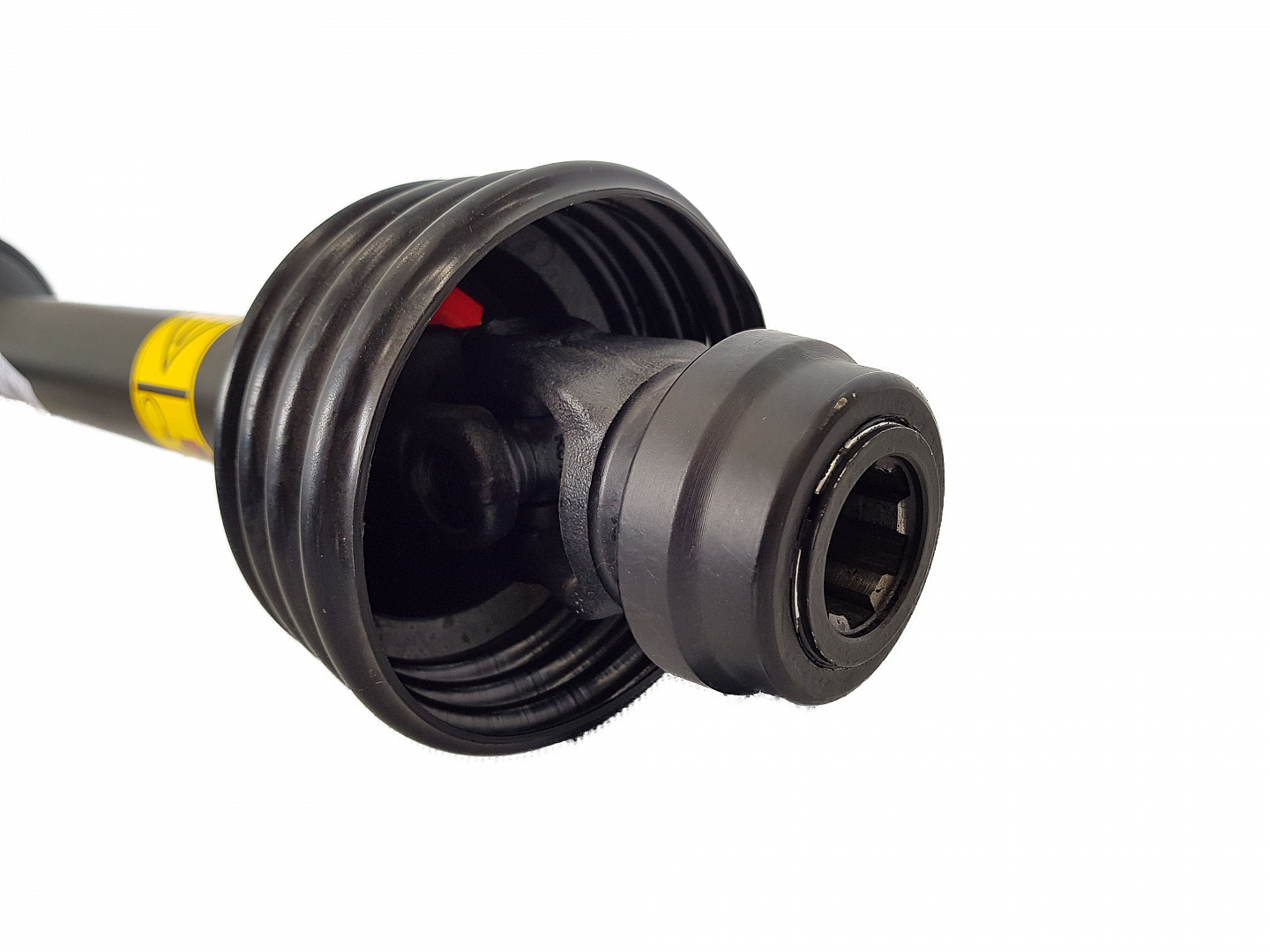

Machine side connection AG 1 3/8-6 mit Slide-Lock

Tractor side connection 1 3/8-6 Slide Lock fork

Design size Walterscheid 2200

Construction size Weasler AW20

Cross unit 23.8 x 61.2 mm

Length (L) max. 1 065 mm

Length (L) min. 760 mm

Power (PS) at 1000 rpm 33 Horsepower

Power (PS) at 540 rpm 21 Horsepower

Profile tube on machine side 41 x 2.9 mm

Profile tube on tractor side 34.5 x 4 mm
