Wood block chippers

PIRBA WITH TROLLEY CONNECTION

Kód výrobku: SP/TRA/06

Machine equipment is designed for crushing branches, wood and wood waste, using two-way self-feeding cutting screw. The machine has automatic feeder and all functions are turned on mechanically. Required tractor power from 20 kW and more. The wood block chipper takes branches with leaves, needles, branched, dry, wet, and takes also boards and beams.

Connection to the three-point hitch of the tractor according to customer's specifications. When crushing the branches are inserted from a side the tractor and chips are blown behind the tractor. The chip is blown by the chimney to the ground or to the crate. Into the bag by bagging chimney(accessory).

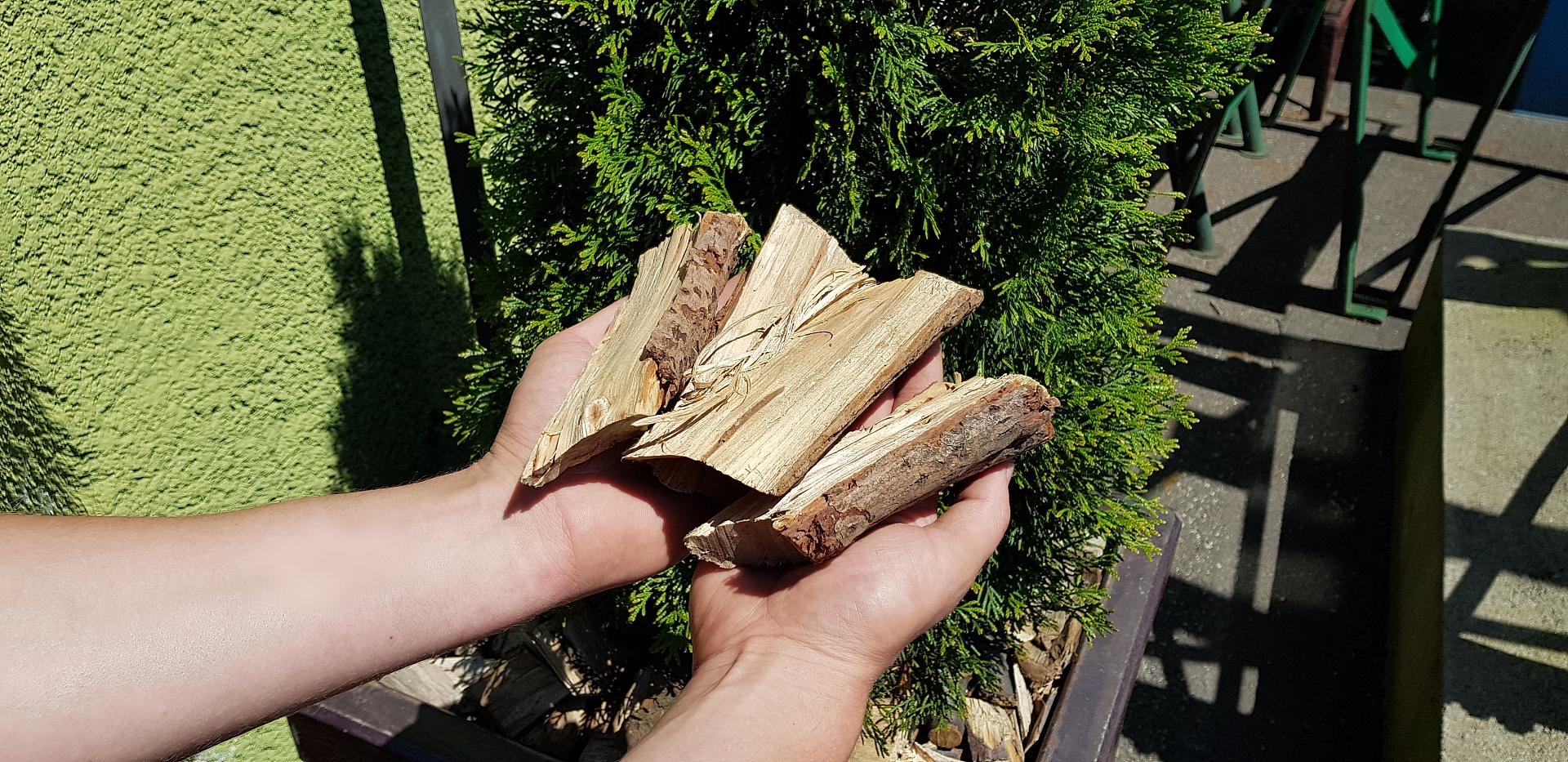

The final chip is suitable for heating in a boiler or fireplace, soil fixing and possibly for other purposes. The chip is asymmetrical and airy, so beautifully swells, does not mould and its calorific value is very high.


WIRING SPECIFICATIONS FOR TRACTOR
Pieces
Without VAT
from 125 000 Kč

Availability:
P
We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.
Into production

Media

Pictures

Video

Technical parameters

Length:x m
Width:x m
Height:x m
Weight:360 kg
Cutting mechanism:two-way auger
Maximal crushed material diameter:max. Ø 10 cm
Chip length (not adjustable):Chip length 17 cm
Power:7 m3/hour
Wood chips output:Output blow
Platform hinge:Yes
Emergency brake:Yes
Tractor power from:20 kW
Cardan RPM:540 RMP
Hinge type:I a II - as specified by the customer
the cardan shaft isn't inclusive:

PRODUCT LIST

Download product datasheet in PDF format:

Wiring specification for tractor

TYPE OF RACEd1 = Ø PINS BOTTOM HINGEd2 = Ø PIN THIRD POINTHEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.IIØ28mmØ25mm730mm
Tractor cat.IØ22mmØ19mm730mm
Small tractorØ22mmØ19mm530mm
Other
(own specification)
