Mulchers

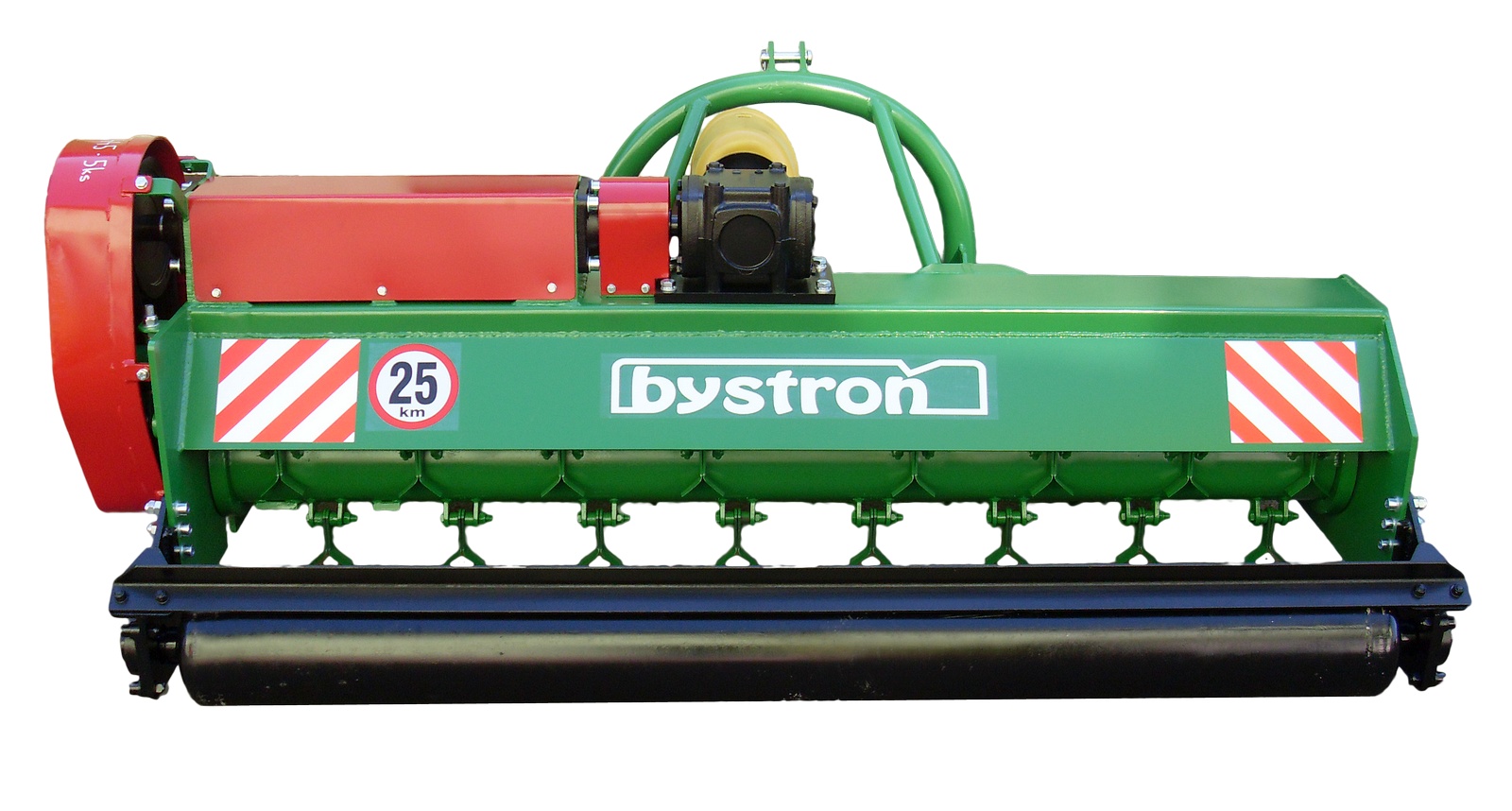

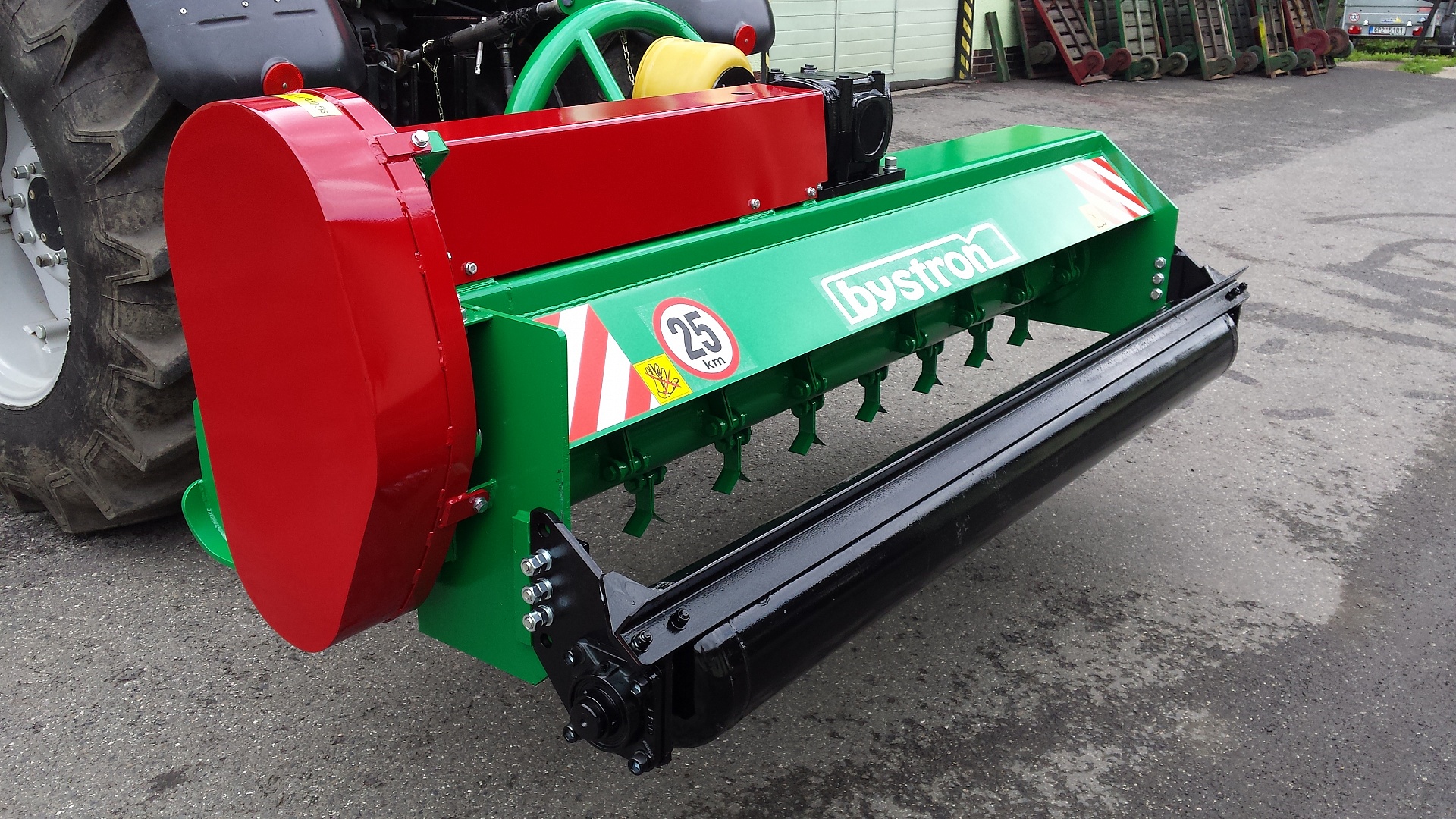

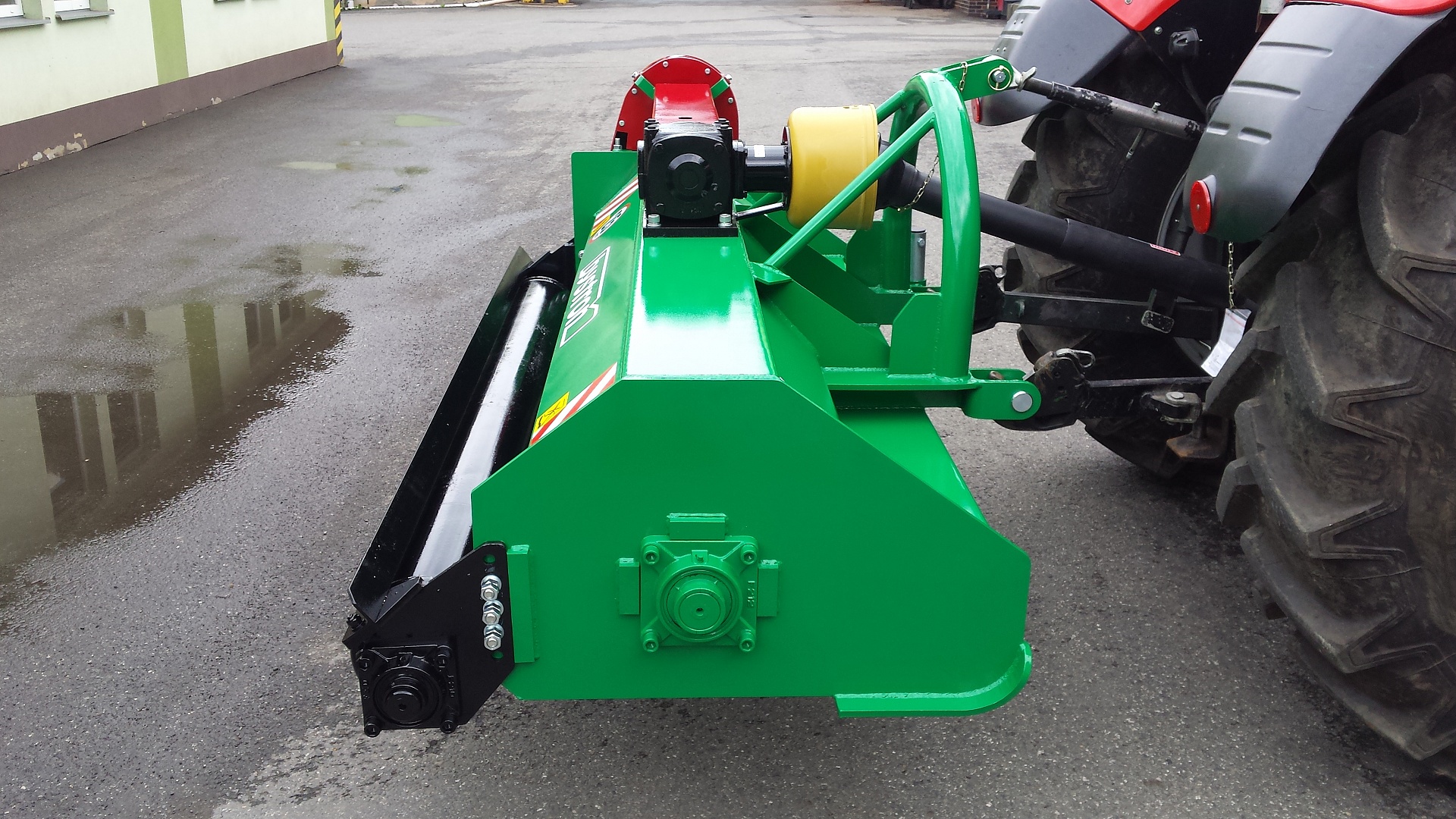

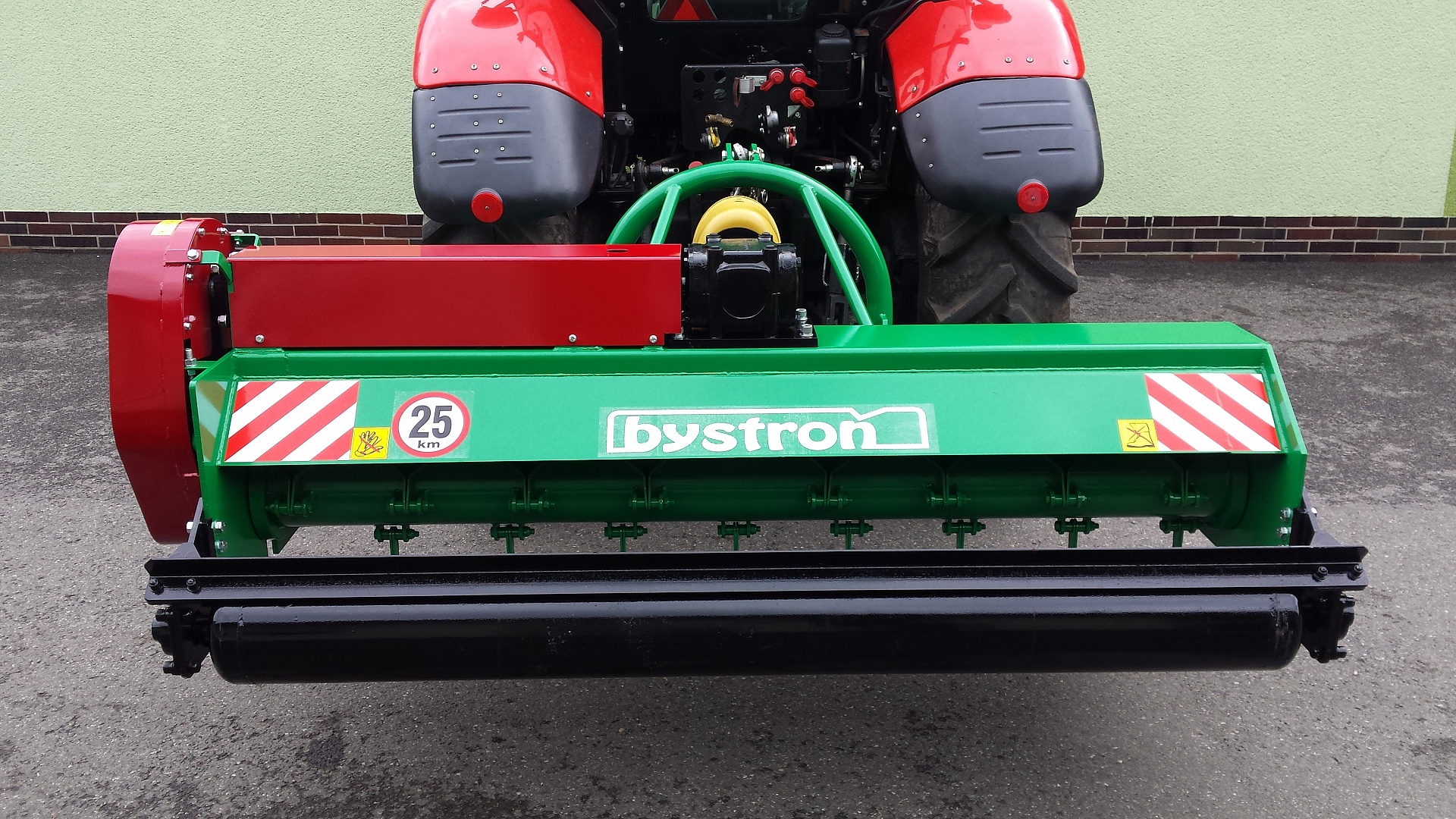

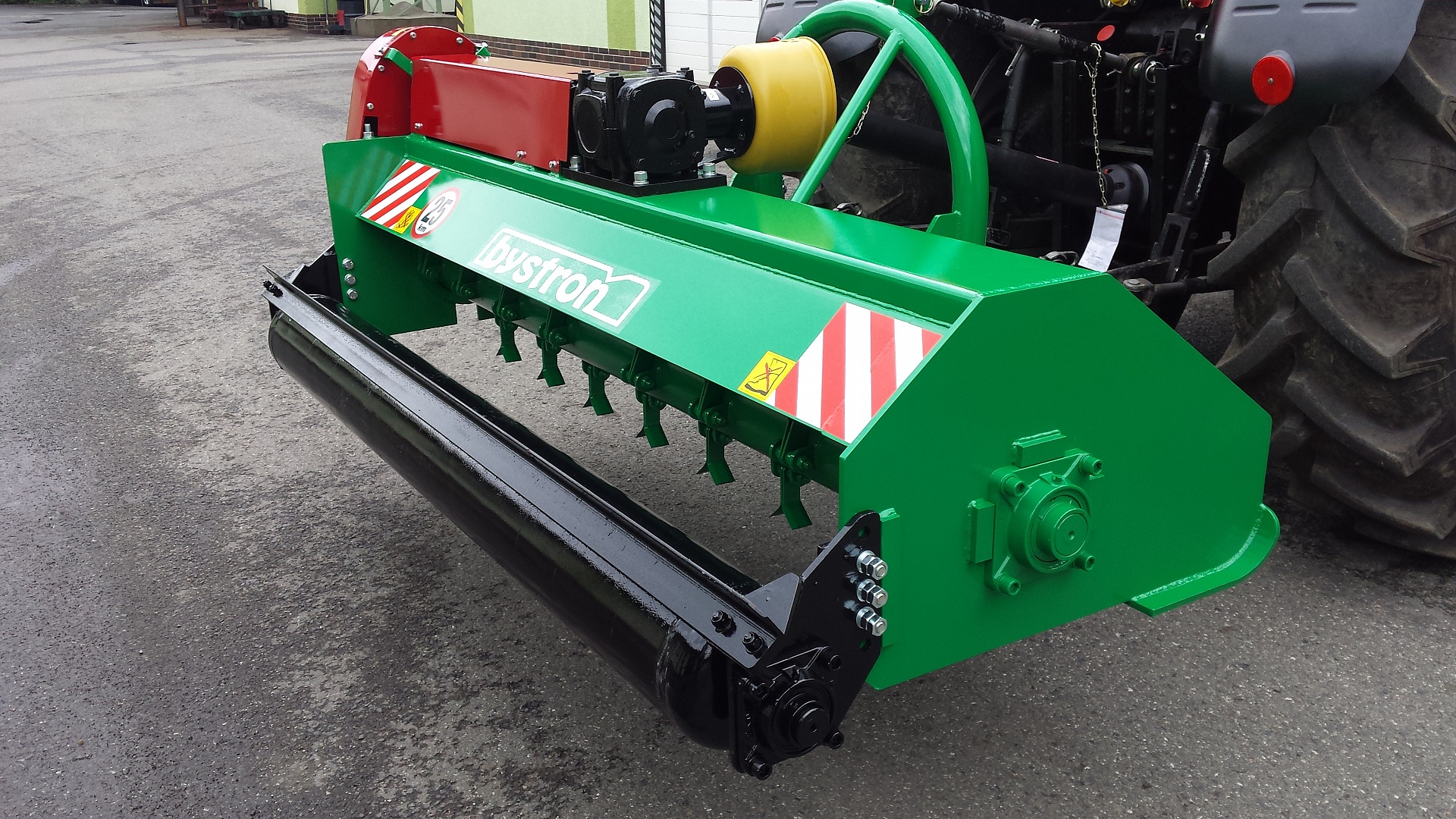

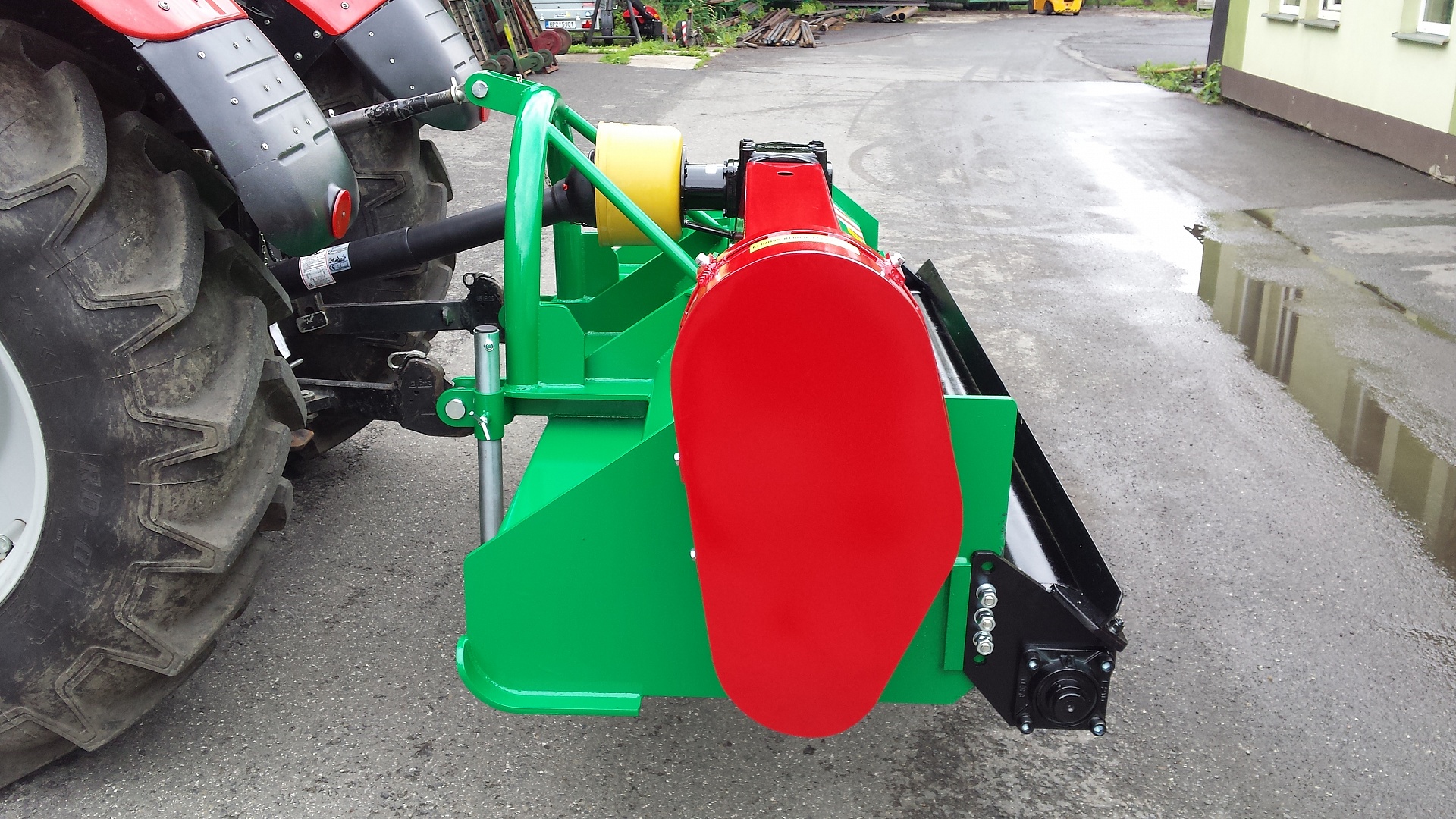

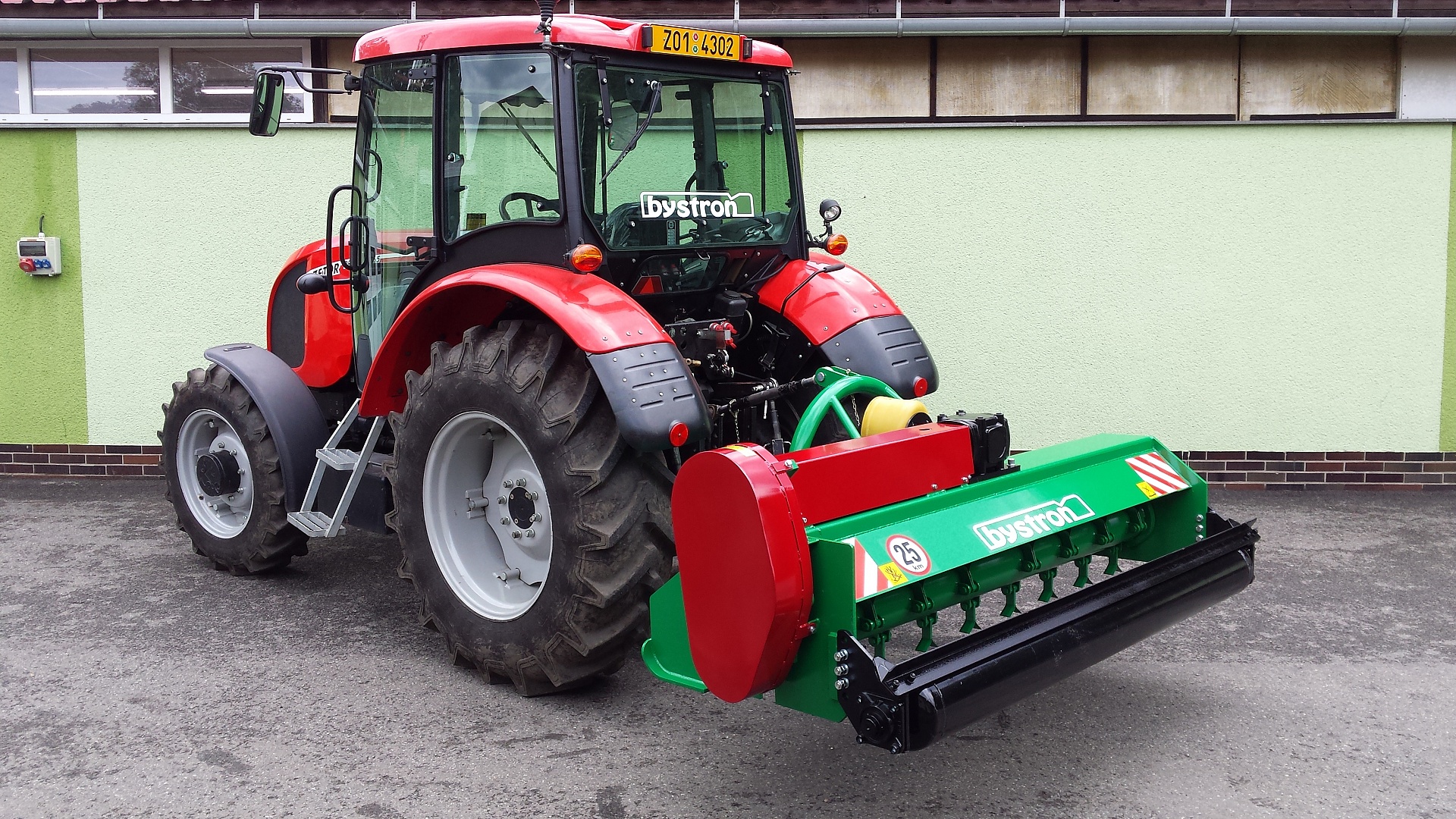

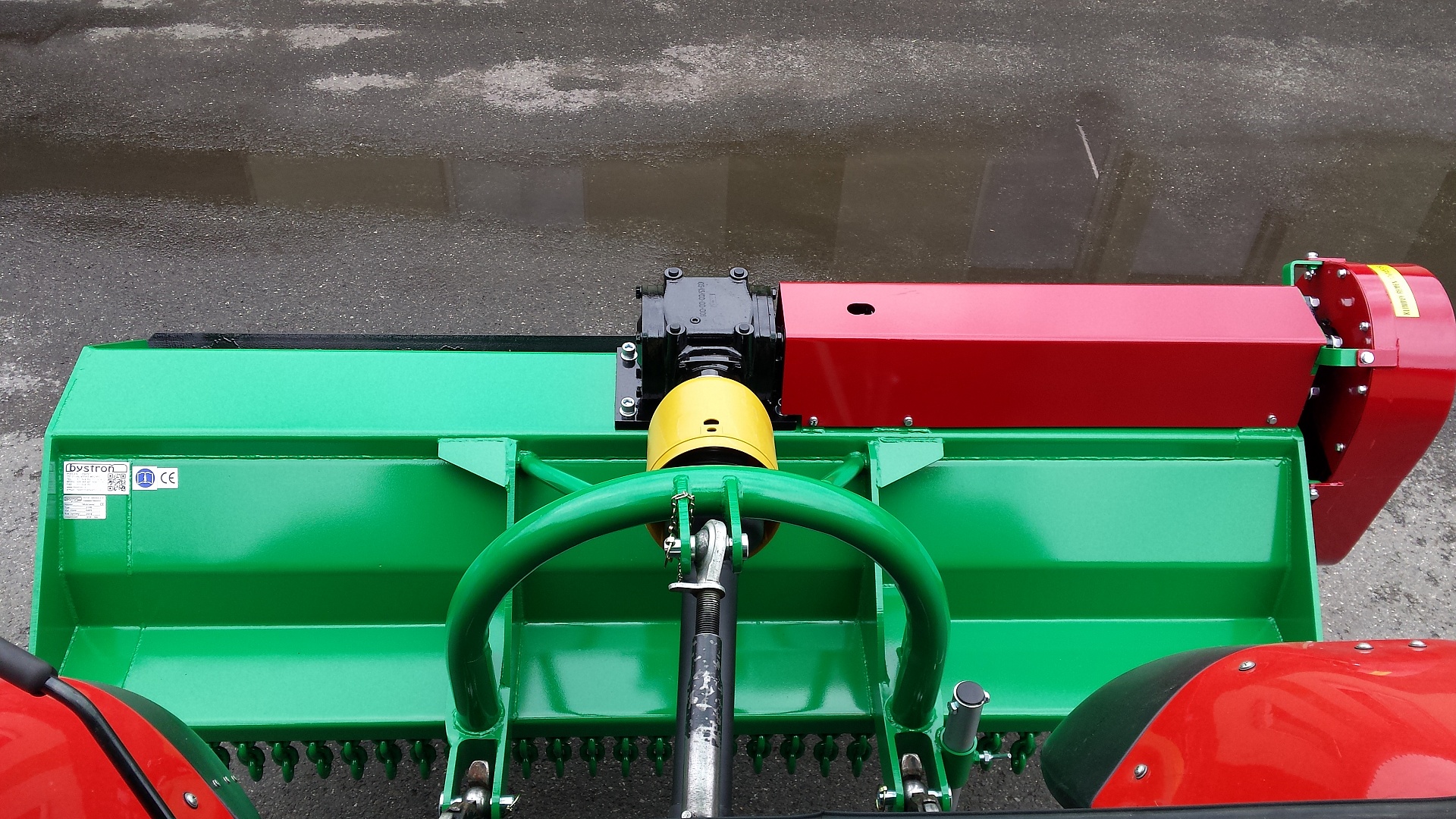

MULCHER 2.100

Kód výrobku: MU/04

Machine designed for surface crushing - mulching of grasses, plant residues and woods.

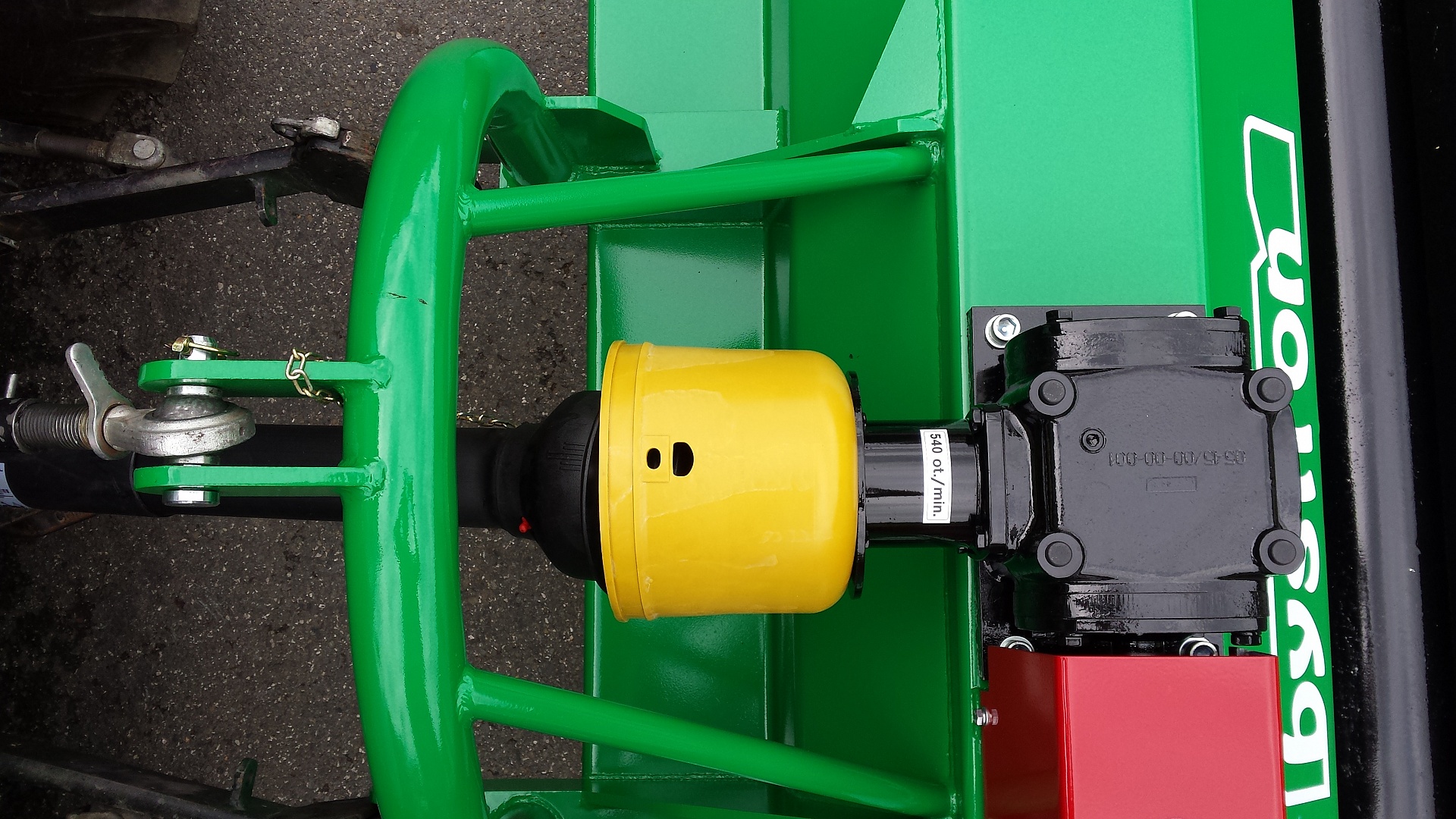

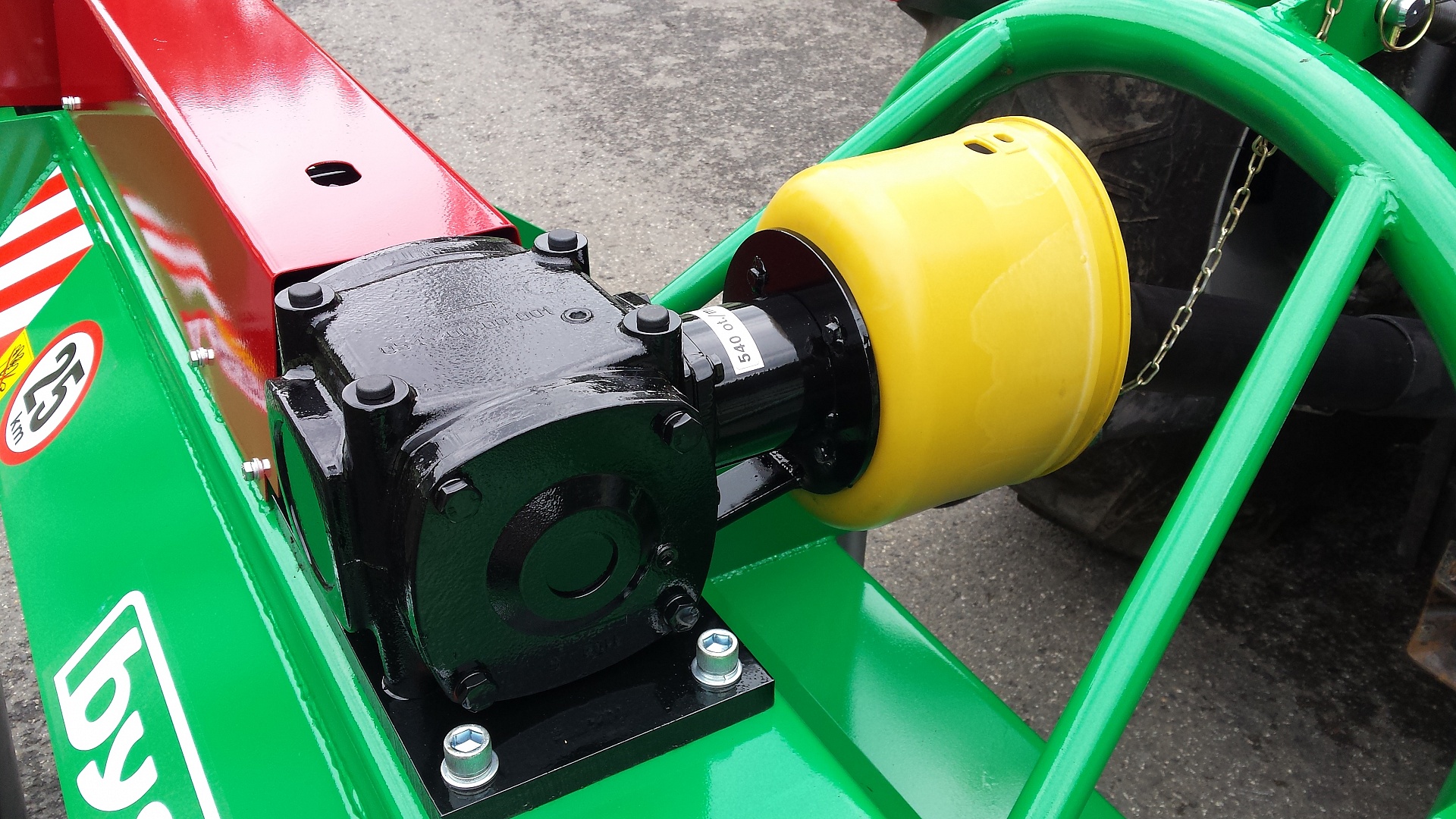

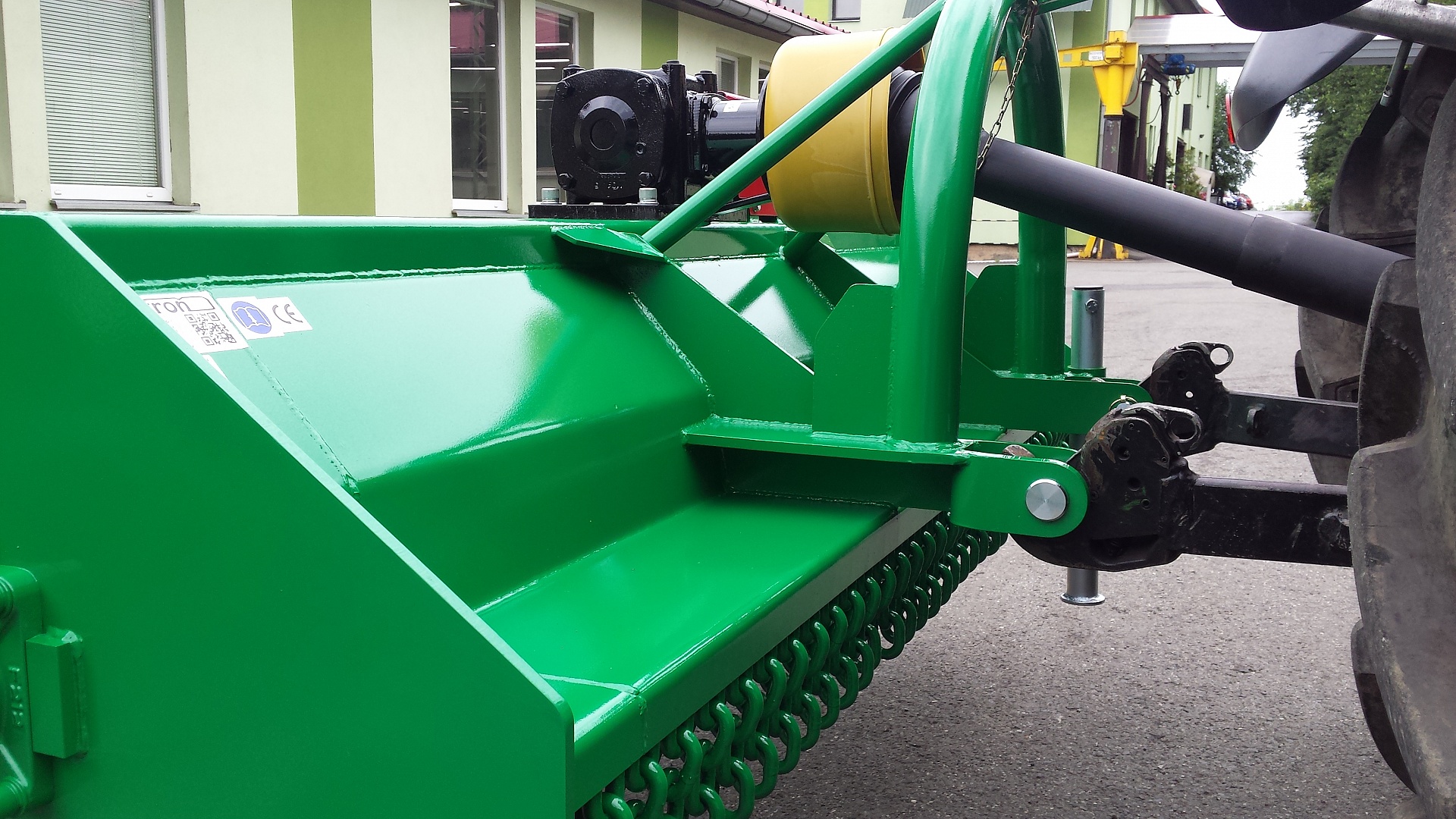

Connection to three-point hitch of tractor / small tractor according to customer's specification. Driven is by the tractor's PTO shaft and all functions are turned on mechanically. It is a fixed variant and it is not possible to adjust the side extension / tilt. Standard delivered blades are Y-shaped for grass. The knives can be replaced with hammers.

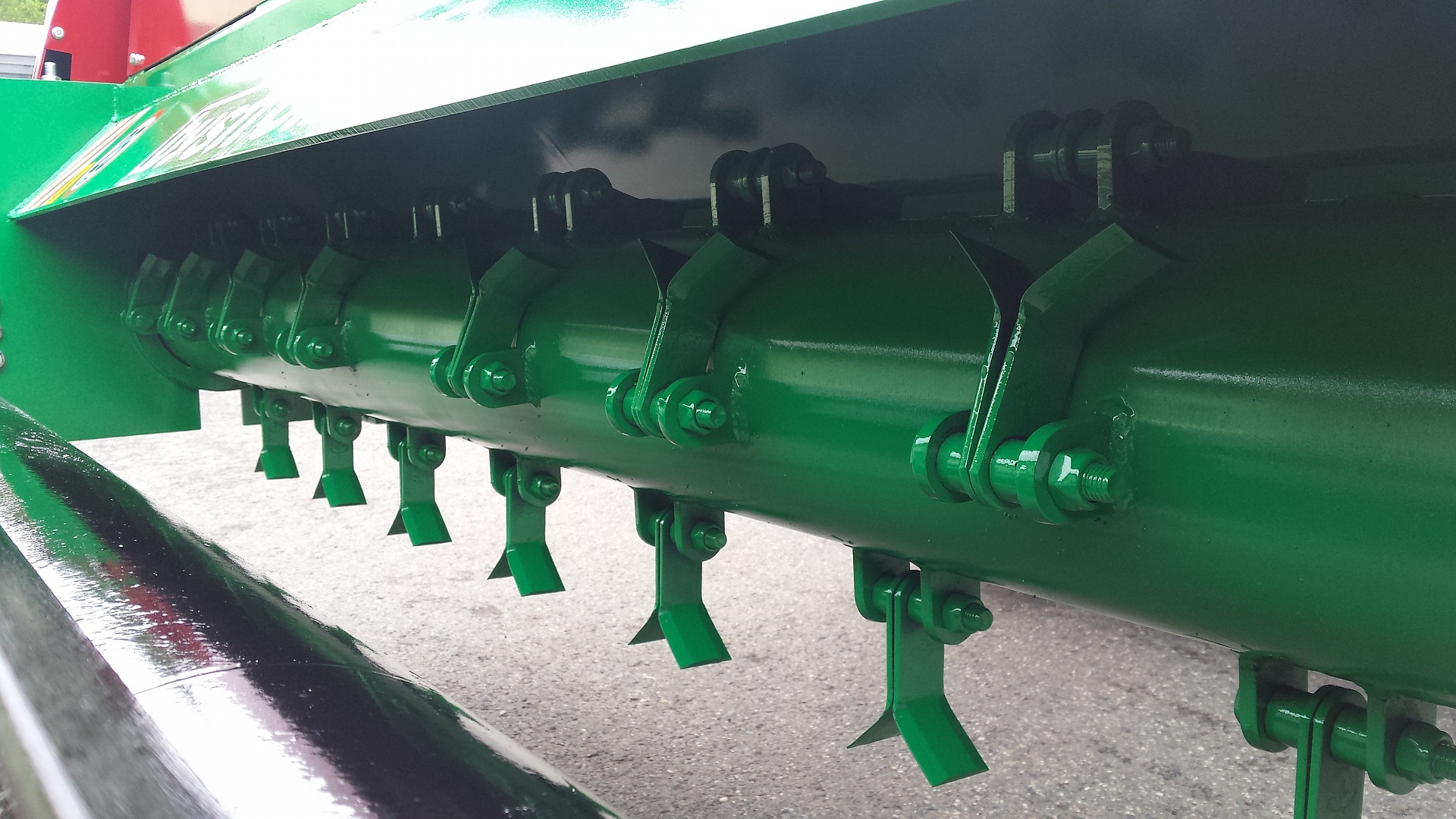

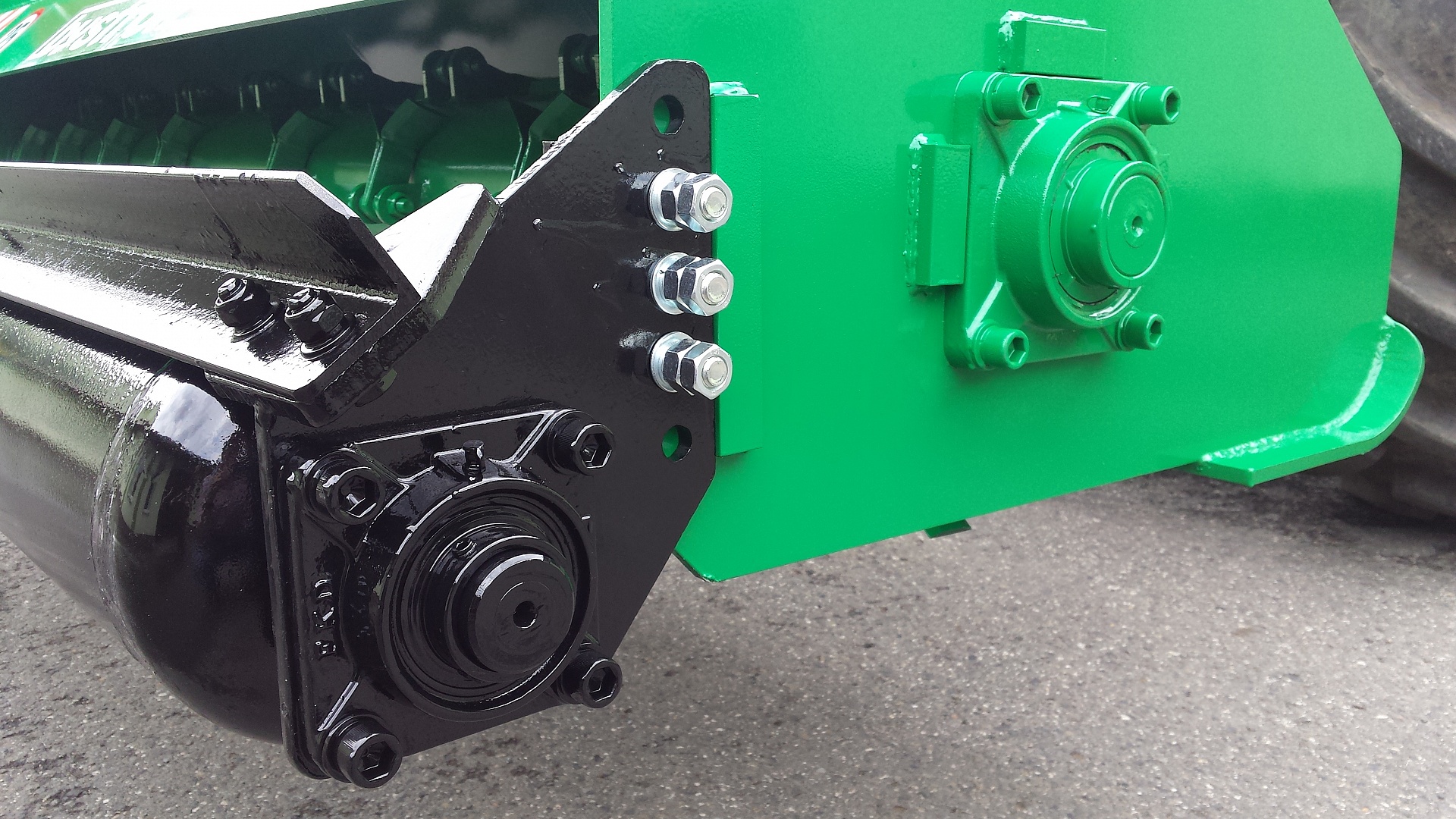

The machine excels in its robust construction, which is welded and reinforced with thicked-wall material, which creates a unit resistant to bending, cracking and other damage. The high power of the machine ensures a balanced main work cylinder, where the knife type can be changed. Height of the mulch from the ground is adjusted with the copy cylinder.

Variant for straw crushing and variant combi (grass - straw): for mulching of straw or straw + grass, the mulcher is constructively modified. In addition, we have a contra-rotating cutter, the back cover is hinged and has propellers that blow the straw into the interline. The knives are straight II, for the combined version of the knife II + Y. The extra variant costs 7000 CZK


TRACTOR CONNECTION
TYPE OF KNIVES
Pieces
Without VAT
from 110 990 Kč
from 99 891 Kč

Availability:
P
We will produce the goods based on the order. You order the goods by adding them to your shopping cart. After shipment we will contact you within 24 hours with additional information.
Into production

Media

Pictures

Video

Technical parameters

Length:1,35 m
Width:2,45 m
Height:0,9 m
Weight:620 kg
Working area width:2,1 m
Tractor power from:35 kW
Cardan RPM:540 RMP
Hinge type:II - as specified by the customer
Rotating cylinder RPM:1 700 RMP
Standard knives Y - max. Ø wood 3cm:64pcs.
Hammer - max. Ø wood 7cm:32pcs.
Straigt knives II - straw:64pcs.
Type:Back - solid
:

PRODUCT LIST

Download product datasheet in PDF format:

Wiring specification for tractor

TYPE OF RACEd1 = Ø PINS BOTTOM HINGEd2 = Ø PIN THIRD POINTHEIGHT OF THE PTO SHAFT FROM THE GROUND
Tractor cat.IIØ28mmØ25mm730mm
Tractor cat.IØ22mmØ19mm730mm
Small tractorØ22mmØ19mm530mm
Other
(own specification)

Accessories and spare parts

SPACER RING

Accessories for harrows - Mulchers

Spacer ring between the knives for Mulcher.

Without VAT
30 Kč

CARDAN 90CM

Accessories for harrows - Chippers

Without VAT
5 500 Kč

CARDAN 90CM WITH FREEWHEEL

Accessories for harrows - Mulchers

Without VAT
9 490 Kč
52863

HAMMER

Accessories for harrows - Mulchers

Hammers are designed for crushing grass and wood up to 7cm in diameter.

Without VAT
385 Kč

KNIVES - I

Accessories for harrows - Mulchers

Straight knife of type I is designed for straw shredding. Price / 1pc.

Without VAT
94 Kč

KNIVES - Y

Accessories for harrows - Mulchers

Straight knife of type Y is designed for crushing grass and wood to a diameter of 3cm. Shape Y - 2pcs. Price / 1pc.

Without VAT
94 Kč

SCREW MULCHER

Accessories for harrows - Mulchers

Contains 1 x screw, 1 x safety nut. Intended for fixing knives type Y, I and hammers.

Without VAT
50 Kč
